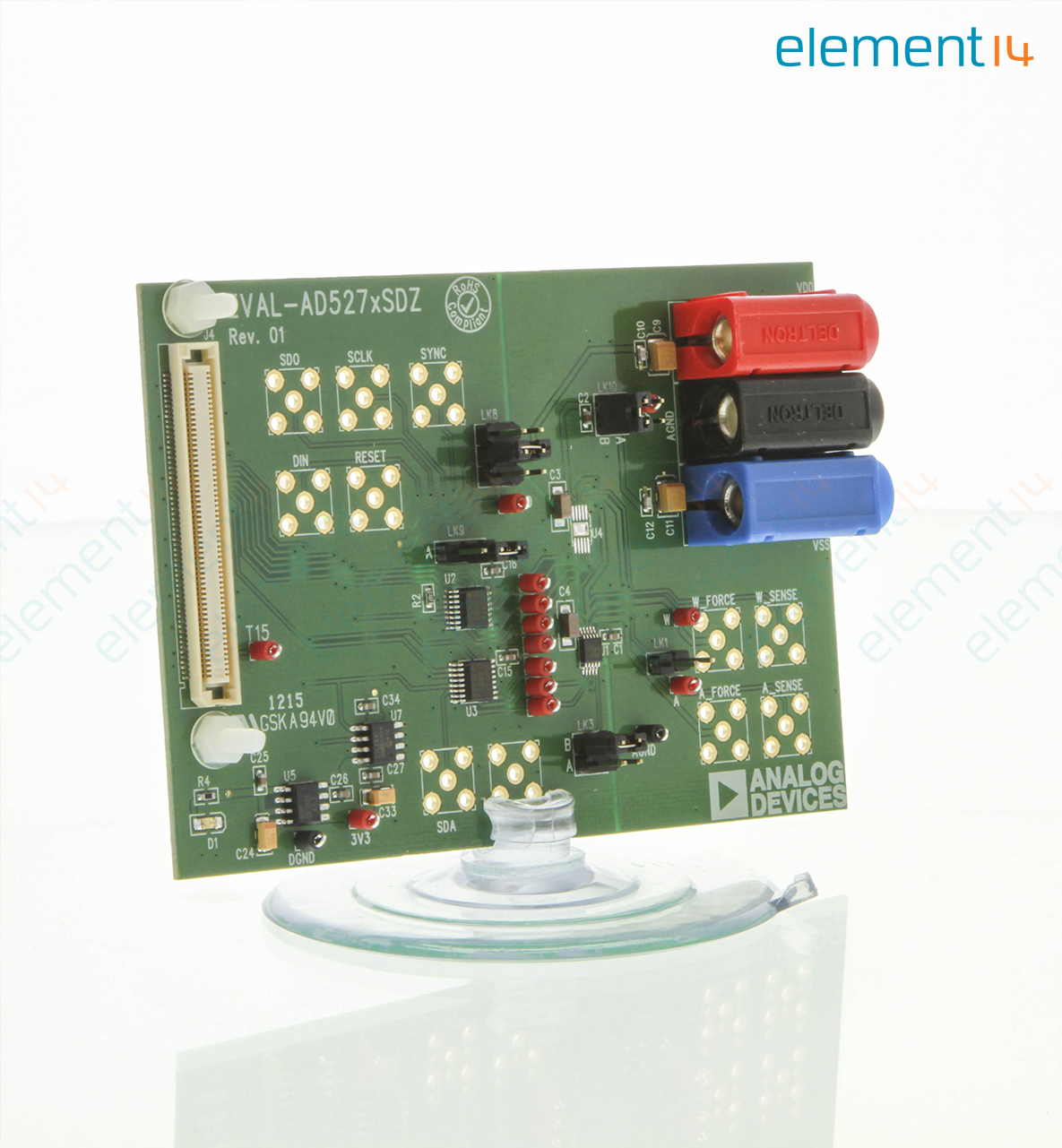

EVAL-AD5272SDZ

Evaluation Kit, AD5272, Digital Rheostat, 10 Bit, 2.7 to 5.5 V Supply

ANALOG DEVICES EVAL-AD5272SDZ
360°
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
EVAL-AD5272SDZ
Order Code:
4023218
Technical Datasheet:
EVAL-AD5272SDZ   Datasheet
See all Technical Docs

Product Overview

EVAL-AD5272SDZ is an evaluation board for 10bit, serial input, high precision digital rheostats. Evaluation board for the AD5272 DAC. This board can also be used to evaluate the AD5274 DAC. These devices are a single-channel, 1024 position digital rheostat with less than ±1% end-to-end resistor tolerance error and 50-time programmable memory. The AD5270 and AD5272 support a dual-supply ±2.5V to ±2.75V operation and a single-supply 2.7V to 5.5V operation making them suited for battery-powered applications and many other applications.
  • Full-featured evaluation board for the AD5270/AD5272
  • 4-wire ohm measurement capability
  • PC control via a separately purchased system demonstration platform (SDP)
  • PC software for control
  • 50-times programmable (50-TP)
  • 1% resistance tolerance error
  • A number of link and switch options are incorporated in the evaluation board

Contents

EVAL-AD5272SDZ evaluation board, CD(Self-installing software that allows users to control the board and exercise all functions of the device, Electronic version of the AD5270/AD5272 data sheet, Electronic version of UG-094).
