HMC539ALP3E
Digital Attenuator, 0 to 4 GHz, 7.75 dB/0.25 dB Step, 1.3 dB Loss, -40 to 85 °C, LFCSP-EP-16
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- HMC539ALP3E
- Order Code:
- 4030725
- Technical Datasheet:
- HMC539ALP3E Datasheet
Product Overview
HMC539ALP3E is a broadband 5bit GaAs IC digital attenuator. This single positive control line per bit digital attenuator utilizes an off chip AC ground capacitor for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 4GHz, the insertion loss is less than 0.7dB typical. The attenuator bit values are 0.25 (LSB), 0.5, 1, 2, and 4dB for a total attenuation of 7.75dB. Attenuation accuracy is excellent at ± 0.05dB typical step error. The attenuator also features a high IIP3 of +62dBm. Five TTL/ CMOS control inputs are used to select each attenuation state. It is widely used in applications such as cellular infrastructure, ISM, MMDS, WLAN, WiMAX, WiBro, microwave radio & VSAT, test equipment and sensors etc.
- Single control line per bit
- TTL/CMOS compatible control
- Single supply voltage range is 3V to 5V
- Insertion loss is 0.7dB typical at (DC - 1.5GHz, TA = +25°C, with Vdd = +5V & Vctl = 0/+5V)
- Input power for 0.1dB compression is 32dBm typ at (0.1GHz - 4GHz)
- Operating temperature range is -40°C to +85°C

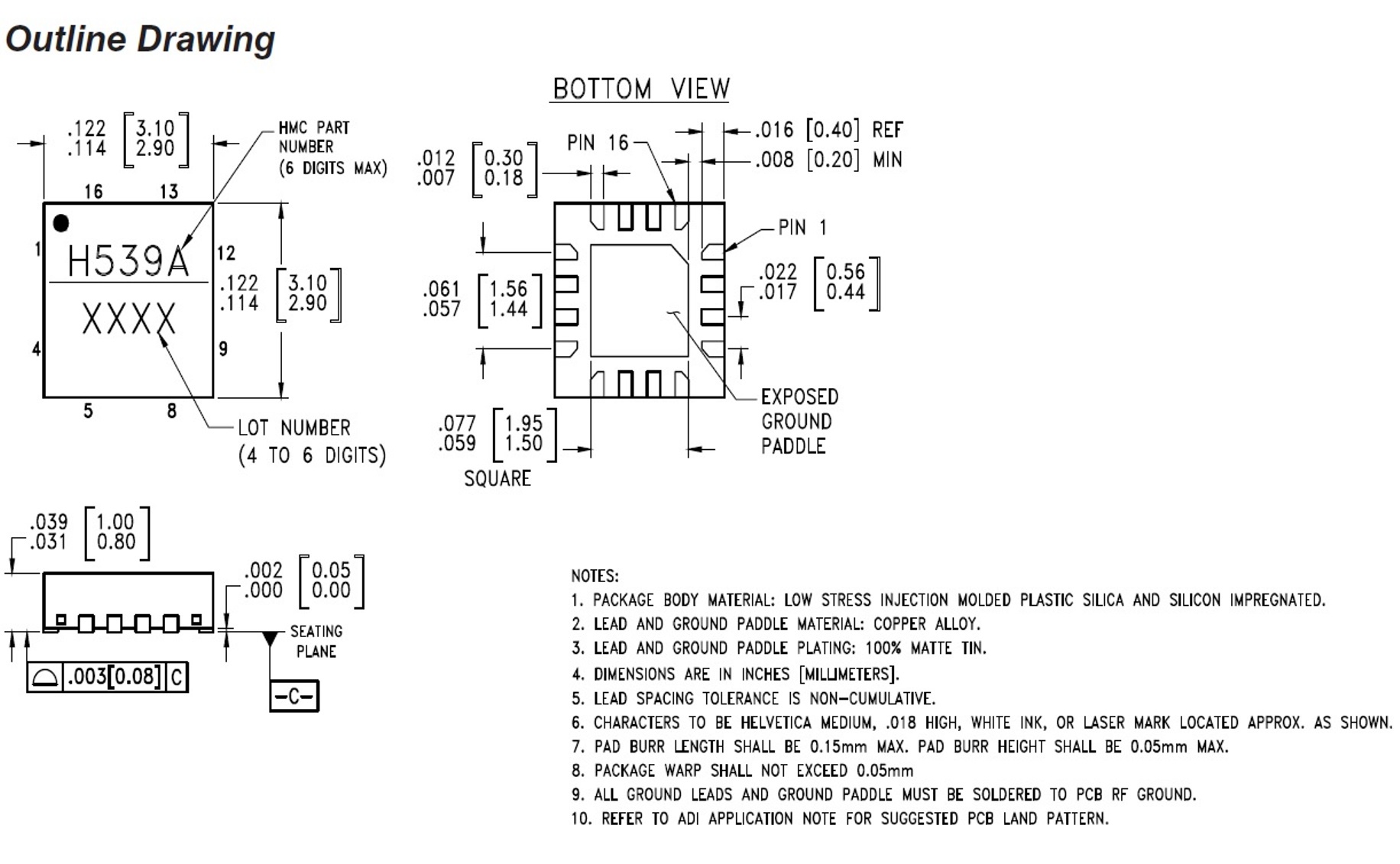

- Package style is SMT
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 4GHz
- :
- 0Hz
- :
- 0.25dB
- :
- 7.75dB
- :
- 1.3dB
- :
- 5bit
- :
- 2.7V
- :
- 5.5V
- :
- 32dBm
- :
- LFCSP-EP
- :
- 16Pins
- :
- 85°C
- :
- -40°C
- :
- -
- :
- MSL 3 - 168 hours
