HMC802ALP3E
Digital Attenuator, 0 to 10 GHz, 20 dB/0.6 dB Step, 2.5 dB Loss, 1bit, -40 to 85 °C, LFCSP-EP-16
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- HMC802ALP3E
- Order Code:
- 4030739
- Technical Datasheet:
- HMC802ALP3E Datasheet
Product Overview
HMC802ALP3E is a broadband bidirectional 1-bit GaAs IC digital attenuator. This single positive control line digital attenuator utilizes off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 10GHz, the insertion loss is less than 3dB typical and attenuation accuracy is excellent at ±0.6dB typical. The attenuator also features a high IIP3 of +55dBm. One TTL/CMOS control input is used to select the attenuation state and a single Vdd bias of +5V is required. It is widely used in applications such as test equipment and sensors, ISM, MMDS, WLAN, WiMAX, WiBro, microwave radio & VSAT, cellular infrastructure etc.
- Single control line
- TTL/CMOS compatible control
- Attenuation range is 20dB typical at (DC - 10GHz, TA = +25°C, With Vdd = +5V & Vctl = 0/+5V)
- Input power for 0.1dB compression is 27dBm typ at (DC - 10GHz, TA = +25°C)
- Operating temperature is -40°C to +85°C

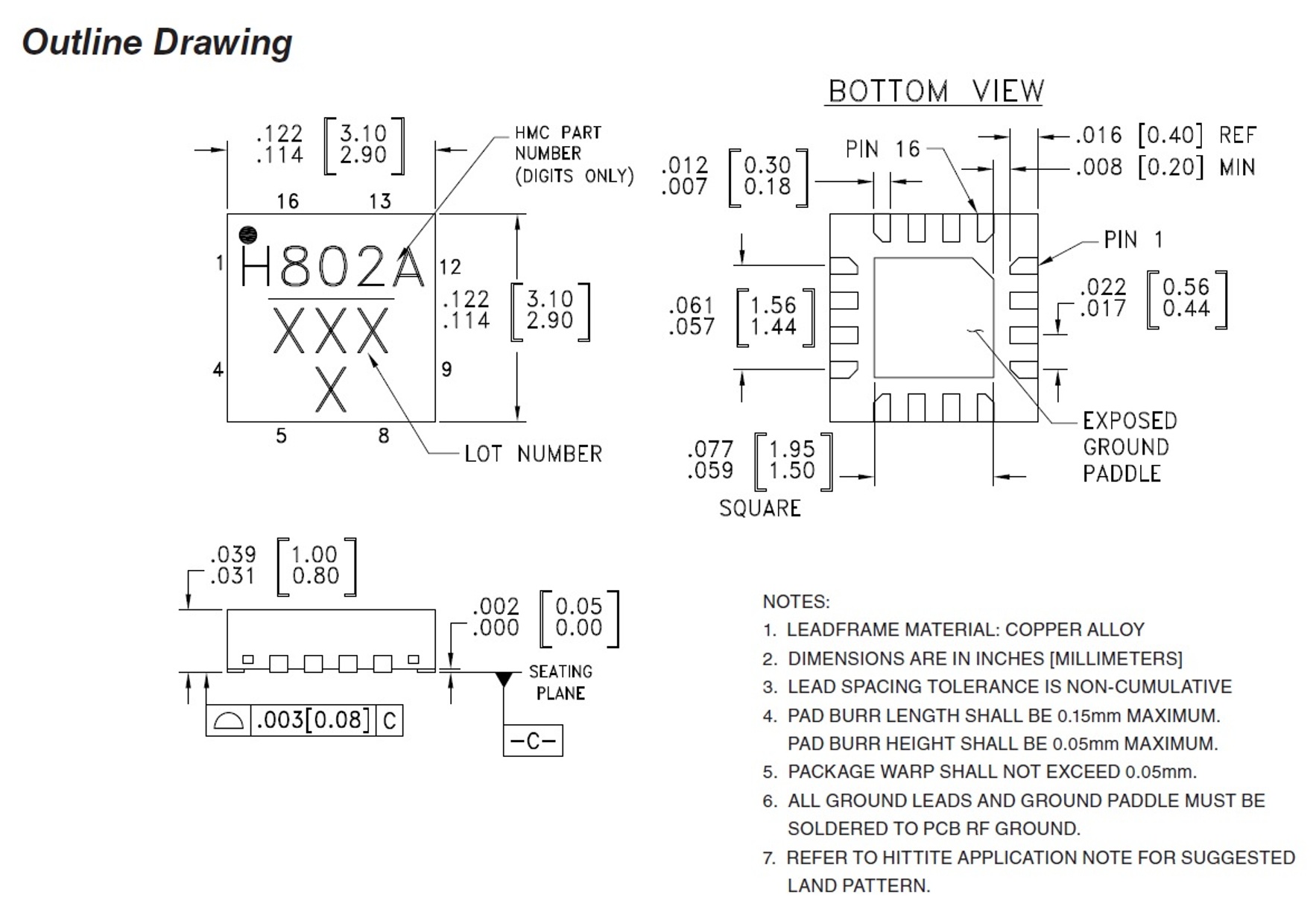

- Package style is 16-lead SMT
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 10GHz
- :
- 0Hz
- :
- 0.6dB
- :
- 20dB
- :
- 2.5dB
- :
- 1bit
- :
- 4.5V
- :
- 5.5V
- :
- 27dBm
- :
- LFCSP-EP
- :
- 16Pins
- :
- 85°C
- :
- -40°C
- :
- -
- :
- MSL 3 - 168 hours
Technical Documents (2)
389 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier.
Extra stock is available upon order to the Supplier Lead Time which is approximately 1/1/24
389 UK stock available for 4-6 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
Rs.654.46
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
- 10+
- 25+
- 100+
- 250+
- 500+
- 1000+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | Rs.654.46 | |
| 10+ | Rs.599.92 | |
| 25+ | Rs.545.38 | |
| 100+ | Rs.490.84 | |
| 250+ | Rs.450.14 | |
| 500+ | Rs.420.44 | |
| 1000+ | Rs.378.39 | |
