LB2223B
Lab Board, Prototyping MSOP-10/8, DFN-8/10, SOT-23-3/5/6/8, SOIC-8, SC70-5/6 Package Boards
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | LB2223BCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4034345 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.1,603.130 |
| 5+ | Rs.1,571.070 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | LB2223BCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4034345 |
| Technical Datasheet | |
| Accessory Type | Lab Board |
| For Use With | Prototyping MSOP-10/8, DFN-8/10, SOT-23-3/5/6/8, SOIC-8, SC70-5/6 Package Boards |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

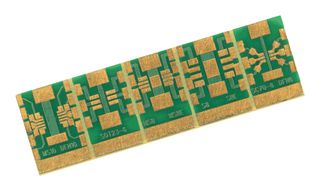

Multi footprint mini board LB2223B is designed to support prototyping with the packages such as MSOP-10, MSOP-8, MSOP-8E, SOIC-8, SOIC-8E, 3x3 DFN-10, 3x3 DFN-8, SOT-23-3, SOT-23-5, SOT-23-6 and SOT-23-8. Each of the pin landing pads is connected to an edge pad to simplify wiring surface mount packages into other circuits. Additionally a Centre trace with pads at each end (and a Centre pad on the two boards on the right) is included for use as a ground trace.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Accessory Type | Lab Board |
|---|---|
| Product Range | - |
| For Use With | Prototyping MSOP-10/8, DFN-8/10, SOT-23-3/5/6/8, SOIC-8, SC70-5/6 Package Boards |
|---|---|
| SVHC | No SVHC (04-Feb-2026) |
