MAXREFDES131#

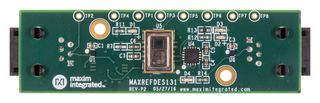

The MAXREFDES131# is a 1-WIRE Grid-EYE sensor. The MAXREFDES131# integrates the DS28E17 1-Wire-to-I2C master bridge with the AMG8833 Grid-EYE sensor from Panasonic electronic components. The system enables presence sensing, people counting and gestures while tethered up to 100m along the 1-Wire bus. The board features RJ-11 connectors and convenient mounting holes for quick evaluation and implementation. The source code for interfacing with MAXREFDES131# is available for both Arm, mbed and Arduino platforms. This design conveniently works with MAXREFDES132#, a hardware 1-Wire shield. A demonstration GUI allows for visual feedback of up to 10 daisy-chained MAXREFDES131# 1-Wire Grid-EYE sensors.

• Flexible location
• Power conserving sleep mode
• Extended range
• Building automation; People counting; Lighting control; Presence sensing; Gestures
