Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ANDERSON POWER PRODUCTS |
|---|---|
| Manufacturer Part No | 6325G1Copy |
| Order Code | 1462788 |
| Product Range | SB175 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | ANDERSON POWER PRODUCTS |
|---|---|
| Manufacturer Part No | 6325G1Copy |
| Order Code | 1462788 |
| Product Range | SB175 |
| Technical Datasheet | |
| Product Range | SB175 |
| No. of Contacts | 2Contacts |
| Gender | Plug, Receptacle |
| Pitch Spacing | - |
| Contact Termination Type | Crimp |
| No. of Rows | 1 Row |
| Connector Mounting | Cable Mount |
| Contact Plating | Silver Plated Contacts |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

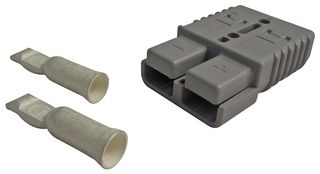

The 6325G1 is a 2-way Power Connector with silver-plated wire contacts. The second to largest SB® housings work with wire contacts up to 1/0 AWG (50mm²).
- 600VAC/DC Voltage Rating
- 2200VAC Dielectric Withstanding Voltage
- Polycarbonate Standard Plastic Resin
- Stainless Steel Contact Retention Spring
Applications
Communications & Networking, Power Management, Medical
Technical Specifications
| Product Range | SB175 |
|---|---|
| Gender | Plug, Receptacle |
| Contact Termination Type | Crimp |
| Connector Mounting | Cable Mount |
| Contact Material | Copper Alloy |
| No. of Contacts | 2Contacts |
|---|---|
| Pitch Spacing | - |
| No. of Rows | 1 Row |
| Contact Plating | Silver Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .116 |
