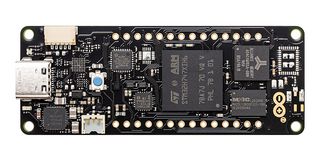

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ABX00045Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3874820 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.4,556.380 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.4,556.38
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ABX00045Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3874820 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Family Name | STM32 |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Silicon Core Number | STM32H747XI |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
Portenta H7 Lite board is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible. It is perfect for developers who want to leverage the computational power of the Portenta H7, without the need for video output or advanced security features. The Portenta H7 Lite simultaneously runs high-level code and real-time tasks thanks to its two processors. For example, it can execute Arduino-compiled and MicroPython code at the same time, and have the two cores communicate with one another.
- STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- 2.95μA current consumption in standby mode (backup SRAM OFF, RTC/LSE ON)
- 22x timers and watchdogs, 4x UART ports (2 with flow control)
- 10/100Mbps Ethernet (through expansion port only)
- Two 80 pin connectors will expose all of the module's peripherals to other devices
- 3 xADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS), 2 x 12-bit DAC (1MHz)
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| No. of Bits | 32bit |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| SVHC | No SVHC (27-Jun-2024) |
| Silicon Family Name | STM32 |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | STM32H747XI |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .036 |
