25-0503-30
IC & Component Socket, 25 Contacts, SIP Socket, 2.54 mm, 0503 Series, Beryllium Copper

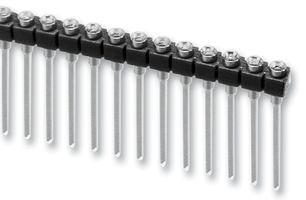

Image is for illustrative purposes only. Please refer to product description.
ManufacturerARIES
Manufacturer Part No25-0503-30
Order Code1674777
Product Range0503 Series
Technical Datasheet
14 In Stock
Need more?
14 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,267.790 |
| 10+ | Rs.1,084.560 |
| 50+ | Rs.1,038.520 |
| 100+ | Rs.962.660 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,267.79
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerARIES
Manufacturer Part No25-0503-30
Order Code1674777
Product Range0503 Series
Technical Datasheet
No. of Contacts25Contacts
Connector TypeSIP Socket
Pitch Spacing2.54mm
Product Range0503 Series
Row Pitch-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Product Overview
The 25-0503-30 is a 25-contact Pin-Line™ Collet Socket with 3-level wire wrap pins termination. This 0503 series socket with gold-plated beryllium copper contacts, red UL 94-HB glass-filled nylon body. Rows of socket strips may be mounted on any centers and are end-to-end or side-by-side stackable for 0.100"grid or matrix patterns. Break feature allows strips to be cut to the number of positions desired.
- 3A Contact current rating
- 0.045 ±0.002" Diameter suggested PCB hole size
Applications
Industrial
Technical Specifications
No. of Contacts
25Contacts
Pitch Spacing
2.54mm
Row Pitch
-
Contact Plating
Gold Plated Contacts
Connector Type
SIP Socket
Product Range
0503 Series
Contact Material
Beryllium Copper
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
