LCM300Q-T-4
AC/DC Front End Power Supply (PSU), Medical, 1 Output, Adjustable, Fixed, 310 W, 24 V, 12.5 A

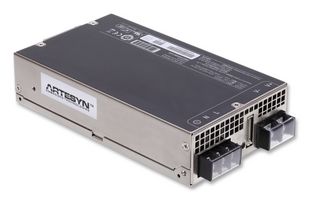

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ARTESYN / ADVANCED ENERGY |
|---|---|
| Manufacturer Part No | LCM300Q-T-4Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2483454 |
| Product Range | LCM300 Series |
| Your Part Number | |
| Technical Datasheet |
34 In Stock
Need more?
7 Delivery in 3-5 Business Days(SG stock)
27 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.22,330.600 |
| 5+ | Rs.18,901.260 |
| 10+ | Rs.18,454.140 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.22,330.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ARTESYN / ADVANCED ENERGY |
|---|---|
| Manufacturer Part No | LCM300Q-T-4Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2483454 |
| Product Range | LCM300 Series |
| Technical Datasheet | |
| Power Supply Applications | Medical |
| No. of Outputs | 1 Output |
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 310W |
| Output Voltage Nom | 24V |
| Output Current Max | 12.5A |
| Product Range | LCM300 Series |
| Input Voltage VAC | 90V AC to 264V AC |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
The LCM300Q-T-4 is a 1-output 310W front-end AC/DC Power Supply with adjustable and fixed output voltage. It offers short circuit protection on all outputs, case overload protected at 110 to 145% above peak rating and 70% typical at full load efficiency.
- Rack mountable
- DSP controlled
- PMBus compliant
- Conformal coat option
- Margin programming
- OR-ing FET
- Optional 5V at 2A housekeeping
- 91% High efficiency at 230VAC
- ±20% Adjustment range
- 7.1 Watts per cubic inch
- -40 °C to 70 °C with derating
Applications
Power Management, Industrial, Medical
Technical Specifications
| Power Supply Applications | Medical |
|---|---|
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage Nom | 24V |
| Product Range | LCM300 Series |
| SVHC | No SVHC (15-Jan-2018) |
| No. of Outputs | 1 Output |
|---|---|
| Output Power Max | 310W |
| Output Current Max | 12.5A |
| Input Voltage VAC | 90V AC to 264V AC |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .8 |
