                      DM301

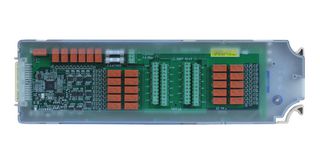

                      Test Accessory, 20-Channel Multiplexer Module with 2 Current Channel

                      B&K PRECISION DM301
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerB&K PRECISION
                      Manufacturer Part NoDM301
                      Order Code4680981
                      Product RangeDAQ3120 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Delivery estimated post order confirmations.You will be charged on despatch.

                      register your interest here

                      QuantityPrice
                      1+Rs.91,051.870
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      Rs.91,051.87
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerB&K PRECISION
                      Manufacturer Part NoDM301
                      Order Code4680981
                      Product RangeDAQ3120 Series
                      Technical Datasheet

                      Data Sheet

                      Accessory Type20-Channel Multiplexer Module with 2 Current Channel
                      For Use WithB&K Precision DAQ3120 Series Data Acquisition Systems
                      Product RangeDAQ3120 Series
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      DM301 20-CH multiplexer with 2 current channels is the most versatile module with armature relays for achieving a maximum input of 300V and a scanning speed of 80 channels per second. The two additional current channels measure up to 1A each without the need for external shunts. Similar to the DM300, the 20 inputs are split into two banks with a switch to make 4-wire measurements. Both 2-wire and 4-wire channels can be mixed on the same module.

                      • Scanning speed up to 80 channels per second
                      • 2-wire and 4-wire measurements
                      • Built-in cold junction reference for thermocouple
                      • 300V maximum input
                      • 2 extra channels for direct current measurements up to 1A each
                      • 2-wire armature switching
                      • 10MHz bandwidth
                      • 80ch/s speed, 300V maximum voltage
                      • 1A current rating

                      Technical Specifications

                      Accessory Type

                      20-Channel Multiplexer Module with 2 Current Channel

                      Product Range

                      DAQ3120 Series

                      For Use With

                      B&K Precision DAQ3120 Series Data Acquisition Systems

                      SVHC

                      No SVHC (21-Jan-2025)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      7 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Taiwan
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85381090
                      US ECCN:3A992.a
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):1.8
