DM304

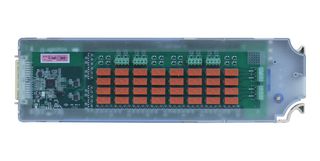

Test Accessory, 4 x 8 Two-Wire Matrix Switch Module
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | DM304Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4680983 |
| Product Range | DAQ3120 Series |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.101,834.720 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.101,834.72
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | DM304Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4680983 |
| Product Range | DAQ3120 Series |
| Technical Datasheet | |
| Accessory Type | 4 x 8 Two-Wire Matrix Switch Module |
| For Use With | B&K Precision DAQ3120 Series Data Acquisition Systems |
| Product Range | DAQ3120 Series |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
DM304 4 x 8 matrix is a dedicated switch module providing up to 32 cross-points in a 4 row by 8 column matrix. This module allows different test equipment to connect to multiple points on the device under test (DUT) at the same time. Additional DM304 modules can be wired together to expand the number of rows or columns, reaching up to 96 cross-points.
- 32 2-wire cross-points
- 3ms switching speed
- 300 V and 1A maximum
- Expandable to 96 cross-points
- 2-wire armature switching
- 10MHz bandwidth
- 300V maximum voltage
Technical Specifications
| Accessory Type | 4 x 8 Two-Wire Matrix Switch Module |
|---|---|
| Product Range | DAQ3120 Series |
| For Use With | B&K Precision DAQ3120 Series Data Acquisition Systems |
|---|---|
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85446090 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.8 |
