DM309
Test Accessory, 8-Channel High Voltage Multiplexer Module with 2 Current Channel

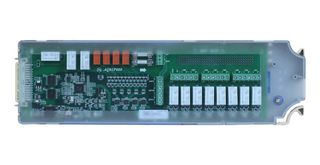

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | DM309Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4680985 |
| Product Range | DAQ3120 Series |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.116,457.860 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.116,457.86
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | DM309Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4680985 |
| Product Range | DAQ3120 Series |
| Technical Datasheet | |
| Accessory Type | 8-Channel High Voltage Multiplexer Module with 2 Current Channel |
| For Use With | B&K Precision DAQ3120 Series Data Acquisition Systems |
| Product Range | DAQ3120 Series |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
DM309 8-CH high voltage multiplexer with 2 current channels increases the maximum measurable voltage from 300 to 600V DC or 400Vrms. The 2 additional current channels handle DC and AC measurements up to 2A without the need of external shunts. For added protection, each current channel connects to a fuse conveniently located within the module. This module supports thermocouple measurements as well, provided there is an external cold junction reference available.
- Scanning speed up to 60 channels per second
- 600V DC or 400Vrms maximum input
- 2-wire and 4-wire measurements
- 2 extra channels for current measurements up to 2A each
- 2-wire armature switching
- 10MHz bandwidth
- 60ch/s speed, 600V DC/400Vrms maximum voltage
- 2A current rating
Technical Specifications
| Accessory Type | 8-Channel High Voltage Multiplexer Module with 2 Current Channel |
|---|---|
| Product Range | DAQ3120 Series |
| For Use With | B&K Precision DAQ3120 Series Data Acquisition Systems |
|---|---|
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.8 |
