| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 8102Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3855030 |
| Your Part Number | |
| Technical Datasheet |
207 In Stock
Need more?
207 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.894.730 |
Price for:1 Metre
Minimum: 1
Multiple: 1
Rs.894.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 8102Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3855030 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 2 Pair |
| Wire Gauge | 24AWG |
| Conductor Area CSA | 0.2mm² |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Voltage Rating | 30V |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 6.9mm |
| Product Range | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview

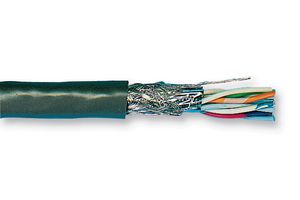

The 8102 is a 2-pair 4-conductor low capacitance shielded Computer Cable with tinned copper conductors with foam high density polyethylene insulation. It has an outer shield of 100% aluminium foil-polyester tape with shorting fold coverage and 65% TC braid coverage.
- CPR: Not Yet Qualified
- 27.5lb Maximum recommended pulling tension
- 100Ω Impedance
- 1.8A at 25°C Current per conductor
- -30 to 80°C Operating temperature range
Applications
Computers & Computer Peripherals, Communications & Networking
Notes
Splice-free continuous cable is available (Max Length : 152 meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | - |
| Jacket Colour | Chrome |
| Voltage Rating | 30V |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 2 Pair |
|---|---|
| Conductor Area CSA | 0.2mm² |
| Reel Length (Metric) | - |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Jacket Material | PVC |
| External Diameter | 6.9mm |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Alternatives for 8102
1 Product Found
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85441990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .06 |
