9552 0601000
Multipair Cable, Power Limited Tray, Screened, 2 Pair, 18 AWG, 1000 ft, 304.8 m

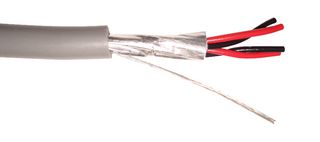

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9552 0601000Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2846661 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.343,179.910 |
Price for:1 Reel: (1000ft/304.8m)
Minimum: 1
Multiple: 1
Rs.343,179.91
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9552 0601000Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2846661 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 2 Pair |
| Wire Gauge | 18AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 1000ft |
| Reel Length (Metric) | 304.8m |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 19 x 30AWG |
| Voltage Rating | 300Vrms |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 9.347mm |
| Product Range | - |
| SVHC | No SVHC (07-Jul-2017) |
Product Overview
The 9552 0601000 305m (1000 ft) 300V Power Limited Tray Multipaired Shielded Cable features two 18 AWG pairs stranded (19x30) tinned copper conductors, PVC insulation, overall Beldfoil® aluminium foil-polyester tape screen (100% coverage), and a chrome PVC jacket.
- 300V UL PLTC, 150V ITC
- Suitable for indoor, outdoor, burial use
- Sunlight and oil resistant
- Flammability rated: UL 1685, CSA FT4, IEEE 1202
- Min Bend Radius/Minor Axis: 93.98mm
- UL AWM Style: 2464 (300V 80°C)
- Operating temperature range: -30°C to +105°C
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 18AWG |
| Reel Length (Imperial) | 1000ft |
| Jacket Colour | Chrome |
| Voltage Rating | 300Vrms |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 2 Pair |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 304.8m |
| No. of Max Strands x Strand Size | 19 x 30AWG |
| Jacket Material | PVC |
| External Diameter | 9.347mm |
| SVHC | No SVHC (07-Jul-2017) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85441990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Jul-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 31.026 |
