09 0321 00 06

Circular Connector, 680 Series, Cable Mount Plug, 6 Contacts, Solder Pin, Nylon (Polyamide) Body

09 0321 00 06 - Circular Connector, 680 Series, Cable Mount Plug, 6 Contacts, Solder Pin, Nylon (Polyamide) Body

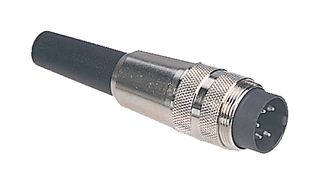

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
09 0321 00 06
Order Code:
1122586
Product Range
680 Series
Technical Datasheet:
09 0321 00 06   Datasheet
See all Technical Docs

Product Overview

The 09 0321 00 06 from Binder is a miniature circular cable plug connector with 6 DIN pin contacts. This connector has compact design and easy to assemble. The contact terminals ensure a secure connection even in the case of high vibration and impact loads. It has M16 screw locking facility according to DIN EN 61076-2-106 standard and provides good EMI characteristics.
  • Cable outlet diameter of 3mm to 6mm
  • Solder termination
  • Wire gauge size is 0.75mm² (20AWG)
  • IP40 degree of protection
  • Temperature range from -40°C to 85°C
  • Rated voltage of 250V
  • Rated current of 5A at 40°C
  • Brass (CuZn) contacts with silver (Ag) plating
  • UL94 V-0 rated polybutylene terephthalate (PBT) contact body
  • UL94 HB rated polyamides (PA) housing

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
680 Series

:
Cable Mount Plug

:
6Contacts

:
Solder Pin

:
-

:
Nylon (Polyamide) Body

:
-

:
Brass

:
Gold

Find similar products Choose and modify the attributes above to find similar products.
