09 0974 00 02

Circular Connector, 710 Series, Panel Mount Receptacle, 2 Contacts, Solder Socket

09 0974 00 02 - Circular Connector, 710 Series, Panel Mount Receptacle, 2 Contacts, Solder Socket
09 0974 00 02 - Circular Connector, 710 Series, Panel Mount Receptacle, 2 Contacts, Solder Socket

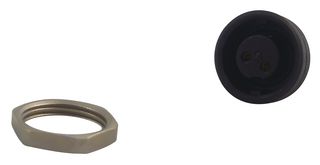

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
09 0974 00 02
Order Code:
1122376
Product Range
710 Series
Technical Datasheet:
09 0974 00 02   Datasheet
See all Technical Docs

Product Overview

The 09 0974 00 02 is a 2-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, PA (UL94 HB) housing. The 710 series receptacle with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
  • 1500V Rated impulse voltage
  • <=3mR Volume resistivity
  • >500 mating cycles Mechanical operation
  • IP40 Protection rating

Applications

Portable Devices, Consumer Electronics, Medical, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
710 Series

:
Panel Mount Receptacle

:
2Contacts

:
Solder Socket

:
-

:
Nylon (Polyamide) Body

:
-

:
Bronze

:
Gold

Find similar products Choose and modify the attributes above to find similar products.
