09 0978 00 03 -

Circular Connector, 710 Series, Panel Mount Receptacle, 3 Contacts, Solder Socket

09 0978 00 03 - Circular Connector, 710 Series, Panel Mount Receptacle, 3 Contacts, Solder Socket
09 0978 00 03 - Circular Connector, 710 Series, Panel Mount Receptacle, 3 Contacts, Solder Socket

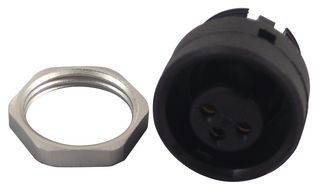

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
09 0978 00 03
Order Code:
1122377
Product Range
710 Series
Technical Datasheet:
09 0978 00 03   Datasheet
See all Technical Docs

Product Overview

The 09 0978 00 03 is a 3-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, PA (UL94 HB) housing. The 710 series receptacle with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
  • 1500V Rated impulse voltage
  • <=3mR Volume resistivity
  • >500 mating cycles Mechanical operation
  • IP40 Protection rating

Applications

Portable Devices, Consumer Electronics, Medical, Industrial

Product Information


:
710 Series

:
Panel Mount Receptacle

:
3Contacts

:
Solder Socket

:
-

:
Nylon (Polyamide) Body

:
-

:
Bronze

:
Gold
