09 0982 00 04

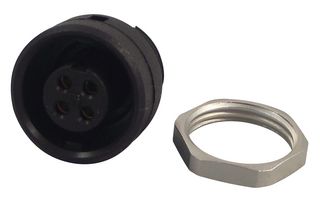

Circular Connector, Subminiature Circular Connector, 710 Series, Panel Mount Receptacle, 4 Contacts
40 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.950.090 |
| 10+ | Rs.885.270 |
| 100+ | Rs.820.450 |
| 250+ | Rs.760.740 |
| 500+ | Rs.701.050 |
| 1000+ | Rs.687.030 |
Product Information
Product Overview
The 09 0982 00 04 is a 4-contact 125V/3A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, PA (UL94 HB) housing. The 710 series receptacle with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
- 1500V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP40 Protection rating
Applications
Portable Devices, Consumer Electronics, Medical, Industrial
Technical Specifications
Subminiature Circular Connector
Panel Mount Receptacle
Solder Socket
Nylon (Polyamide) Body
Bronze
IP40
710 Series
4Contacts
-
-
Gold
Lead (25-Jun-2025)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
