09-3403-00-03
Circular Connector, Subminiature Circular Connector, 718 Series, Panel Mount Receptacle, 3 Contacts
300 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.751.550 |
| 10+ | Rs.731.770 |
| 100+ | Rs.703.980 |
| 250+ | Rs.689.910 |
| 500+ | Rs.675.830 |
| 1000+ | Rs.661.750 |
Product Information
Product Overview

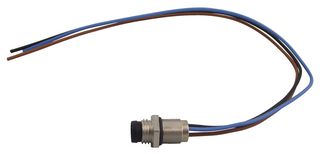

The 09-3403-00-03 is a 3-contact 60V/4A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94 HB) contact body and brass nickel-plated housing. The 718 series receptacle with wire leads, M8 screw locking system, prewired termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The 718 series single-ended cordsets are an over-moulded version of 768 series M8 field-attachable connectors. It is suitable for use with small sensors and actuators.
- 800V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>100 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Industrial
Notes
Hexnut is not included.
Technical Specifications
Subminiature Circular Connector
Panel Mount Receptacle
Solder Pin
Metal Body
Brass
IP65, IP67, IP69K
718 Series
3Contacts
-
-
Gold
Lead (25-Jun-2025)
