Circular Connector, Subminiature Circular Connector, 709 Series, Panel Mount Plug, 3 Contacts

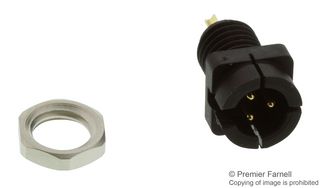

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9749 30 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122806 |
| Product Range | 709 Series |
| Your Part Number | |
| Technical Datasheet |
246 In Stock
160 more incoming. You can reserve stock now
246 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.581.890 |
| 10+ | Rs.538.350 |
| 100+ | Rs.494.810 |
| 250+ | Rs.438.070 |
| 500+ | Rs.407.720 |
| 1000+ | Rs.399.570 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.581.89
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9749 30 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122806 |
| Product Range | 709 Series |
| Technical Datasheet | |
| Connector Type | Subminiature Circular Connector |
| Product Range | 709 Series |
| Circular Connector Shell Style | Panel Mount Plug |
| No. of Contacts | 3Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | IP40 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 09 9749 30 03 is a 3-contact 60V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA contact body and housing. The 709 series plug with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
- 800V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>100 mating cycles Mechanical operation
- IP40 Protection rating
Applications
Portable Devices, Consumer Electronics, Medical, Industrial
Technical Specifications
| Connector Type | Subminiature Circular Connector |
|---|---|
| Circular Connector Shell Style | Panel Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Brass |
| IP Rating | IP40 |
| Product Range | 709 Series |
|---|---|
| No. of Contacts | 3Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (25-Jun-2025) |
