09 9750 30 03

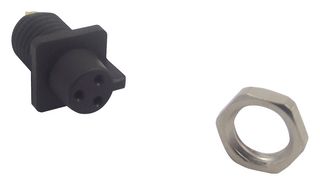

Circular Connector, Subminiature Circular Connector, 709 Series, Panel Mount Receptacle, 3 Contacts
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9750 30 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122808 |
| Product Range | 709 Series |
| Your Part Number | |
| Technical Datasheet |
940 In Stock
2,000 more incoming. You can reserve stock now
125 Delivery in 3-5 Business Days(SG stock)
815 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.720.580 |
| 10+ | Rs.706.170 |
| 100+ | Rs.691.760 |
| 250+ | Rs.677.350 |
| 500+ | Rs.662.940 |
| 1000+ | Rs.648.530 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.720.58
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9750 30 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122808 |
| Product Range | 709 Series |
| Technical Datasheet | |
| Connector Type | Subminiature Circular Connector |
| Product Range | 709 Series |
| Circular Connector Shell Style | Panel Mount Receptacle |
| No. of Contacts | 3Contacts |
| Circular Connector Contact Type | Solder Socket |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Bronze |
| Contact Plating | Gold |
| IP Rating | IP40 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 09 9750 30 03 is a 3-contact female panel mount Circular Connector with gold-plated contacts, PA contact body and housing. Snap connector locking system.
- 60V Rated voltage
- 800V Rated impulse voltage
- 3A Rated current (40°C)
- ≤3mΩ Volume resistivity
- 0.25mm² Wire gauge
- <gt/>100-cycle Mechanical operation (mating)
- IP40 Protection rating
- -25 to 70°C Temperature range
Applications
Industrial
Technical Specifications
| Connector Type | Subminiature Circular Connector |
|---|---|
| Circular Connector Shell Style | Panel Mount Receptacle |
| Circular Connector Contact Type | Solder Socket |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Bronze |
| IP Rating | IP40 |
| Product Range | 709 Series |
|---|---|
| No. of Contacts | 3Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002 |
