09 9766 30 04

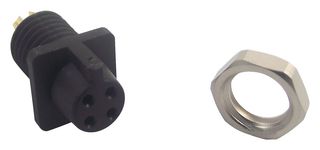

Circular Connector, Subminiature Circular Connector, 709 Series, Panel Mount Receptacle, 4 Contacts
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9766 30 04Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122548 |
| Product Range | 709 Series |
| Your Part Number | |
| Technical Datasheet |
295 In Stock
1,040 more incoming. You can reserve stock now
295 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.833.670 |
| 10+ | Rs.817.000 |
| 100+ | Rs.800.330 |
| 250+ | Rs.783.650 |
| 500+ | Rs.766.980 |
| 1000+ | Rs.750.310 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.833.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 9766 30 04Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122548 |
| Product Range | 709 Series |
| Technical Datasheet | |
| Connector Type | Subminiature Circular Connector |
| Product Range | 709 Series |
| Circular Connector Shell Style | Panel Mount Receptacle |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Solder Socket |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Bronze |
| Contact Plating | Gold |
| IP Rating | IP40 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 09 9766 30 04 from Binder is a subminiature circular female panel mount connector with 4 socket contact. This connector is easy to assemble and has snap-in locking facility.
- Solder termination
- Wire gauge size is 0.25mm² (24AWG)
- IP40 degree of protection
- Temperature range from -25°C to 70°C
- Rated voltage of 60V
- Rated current of 3A at 40°C
- Bronze (CuSn) contacts with gold (Au) plating
- Polyamide (PA) housing
- Polyamide (PA) contact body
- Rated impulse voltage of 800V
Applications
Industrial
Technical Specifications
| Connector Type | Subminiature Circular Connector |
|---|---|
| Circular Connector Shell Style | Panel Mount Receptacle |
| Circular Connector Contact Type | Solder Socket |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Bronze |
| IP Rating | IP40 |
| Product Range | 709 Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002 |
