99 0605 00 03 -

Circular Connector, 678 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Nylon (Polyamide) Body

99 0605 00 03 - Circular Connector, 678 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Nylon (Polyamide) Body
99 0605 00 03 - Circular Connector, 678 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Nylon (Polyamide) Body

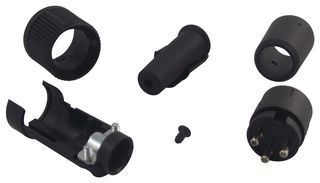

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
99 0605 00 03
Order Code:
1122397
Product Range
678 Series
Technical Datasheet:
99 0605 00 03   Datasheet
See all Technical Docs

Product Overview

The 99 0605 00 03 is a 3-pole cable-mounted male Circular Connector with silver-plated brass contacts and solder termination. The series 678 connector has a quick bayonet locking system, which is reliable under vibration, yet cost-effective. The plastic cable connector housing has a diameter of only 20mm and features an internal strain relief. The connector can accommodate cables with an outer diameter of 4 to 6mm and 6 to 8mm. In mated condition, the non-shielded connector is IP40 rated.
  • Bayonet locking system
  • Plastic shell
  • 20AWG Maximum wire size
  • 250V Rated voltage
  • 7A Rated current
  • <=5mR Volume resistivity

Applications

Industrial

Product Information

:
678 Series
:
Cable Mount Plug
:
3Contacts
:
Solder Pin
:
-
:
Nylon (Polyamide) Body
:
-
:
Brass
:
Silver
