99 0612 00 04
Circular Connector, Miniature Circular Connector, 678 Series, Panel Mount Receptacle, 4 Contacts

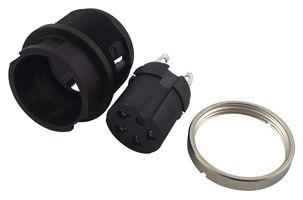

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 0612 00 04Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1122416 |
| Product Range | 678 Series |
| Your Part Number | |
| Technical Datasheet |
369 In Stock
Need more?
369 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.450.230 |
| 10+ | Rs.432.500 |
| 100+ | Rs.407.860 |
| 250+ | Rs.387.410 |
| 500+ | Rs.374.110 |
| 1000+ | Rs.362.480 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.450.23
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 0612 00 04Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1122416 |
| Product Range | 678 Series |
| Technical Datasheet | |
| Connector Type | Miniature Circular Connector |
| Product Range | 678 Series |
| Circular Connector Shell Style | Panel Mount Receptacle |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Solder Socket |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Bronze |
| Contact Plating | Silver |
| IP Rating | IP40 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 99 0612 00 04 is a 4-contact 250V/7A unshielded straight miniature female Circular Connector with silver-plated bronze contacts, PBT (UL94V-0) contact body and PA (UL94V-0) housing. The 678 series receptacle with Bayonet locking system, solder termination, cable mounting style. It accepts 20AWG (0.75mm²) wire, 4 to 6mm cable outlet.
- 1500V Rated impulse voltage
- ≤5mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP40 Protection rating
Applications
Industrial
Technical Specifications
| Connector Type | Miniature Circular Connector |
|---|---|
| Circular Connector Shell Style | Panel Mount Receptacle |
| Circular Connector Contact Type | Solder Socket |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Bronze |
| IP Rating | IP40 |
| Product Range | 678 Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Silver |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008323 |
