99-4221-00-04

Circular Connector, PG9, 693 Series, Cable Mount Plug, 4 Contacts, Screw Pin

99-4221-00-04 - Circular Connector, PG9, 693 Series, Cable Mount Plug, 4 Contacts, Screw Pin
99-4221-00-04 - Circular Connector, PG9, 693 Series, Cable Mount Plug, 4 Contacts, Screw Pin

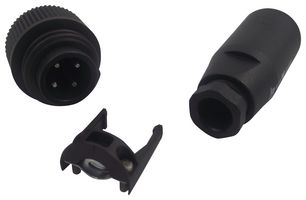

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
99-4221-00-04
Order Code:
1778872
Product Range
693 Series
Technical Datasheet:
99-4221-00-04   Datasheet
See all Technical Docs

Product Overview

The 99-4221-00-04 from Binder is a circular cable plug power connector with 3 + PE pin contacts. This connector has strain relief, screw interlocking and screw termination. This power connector is primarily used in mechanical engineering applications.
  • Connector overmoulded on PVC cable
  • Wire gauge size from 0.5mm² to 2.5mm² (20AWG to 14AWG)
  • Cable outlet diameter from 6mm to 9.5mm
  • IP67 degree of protection
  • Temperature range from -40°C to 100°C
  • Rated voltage of 600V
  • Rated current of 16A at 40°C (12A according to UL rating)
  • Brass (CuZn) contacts with silver (Ag) plating
  • UL94 V-0 rated PBT contact body and housing
  • VDE, UL and ETS approved

Applications

Industrial, Power Management

Product Information


:
693 Series

:
Cable Mount Plug

:
4Contacts

:
Screw Pin

:
-

:
PBT (Polybutylene Terephthalate) Body

:
-

:
Brass

:
Silver
