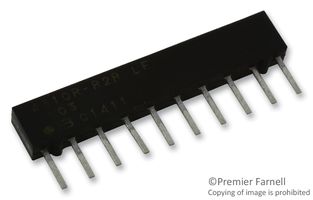

4310R-R2R-103LF
Fixed Network Resistor, 10 kohm, R-2R Ladder, 5 Resistors, SIP, PC Pin, ± 2%
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | 4310R-R2R-103LFCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2112797 |
| Product Range | 4300R Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.397.070 |
| 10+ | Rs.241.340 |
| 100+ | Rs.189.750 |
| 500+ | Rs.159.180 |
| 1000+ | Rs.147.710 |
| 2000+ | Rs.144.760 |
Product Information
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | 4310R-R2R-103LFCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2112797 |
| Product Range | 4300R Series |
| Technical Datasheet | |
| Resistance | 10kohm |
| Network Circuit Type | R-2R Ladder |
| No. of Resistors | 5Resistors |
| Resistor Case / Package | SIP |
| Resistor Terminals | PC Pin |
| Resistance Tolerance | ± 2% |
| Voltage Rating | 100V |
| Power Rating per Resistor | - |
| Temperature Coefficient | ± 100ppm/°C |
| Resistor Type | Network |
| Resistor Technology | Thick Film |
| Resistor Mounting | Through Hole |
| Terminal Pitch | 2.54mm |
| Power Rating | 1.25W |
| Product Length | 24.99mm |
| Product Width | 2.16mm |
| Product Height | 4.95mm |
| Product Range | 4300R Series |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Qualification | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The 4310R-R2R-103LF is a 10kΩ 10-pin 5-element thick film low profile moulded standard ladder Resistor Network is commonly used for digital to analogue (D/A) conversions and analogue to digital (A/D) conversion by successive approximations. The bits of the ladder are the points at which input signals are presented to the ladder and the output terminal (OUT) is the point at which the output is taken from the R/2R ladder. This terminal (OUT) is commonly used to drive an operational amplifier. RT (the terminating resistor) is always connected to ground.
- Tin-coated terminations
- ±2% Standard tolerance
Technical Specifications
| Resistance | 10kohm |
|---|---|
| No. of Resistors | 5Resistors |
| Resistor Terminals | PC Pin |
| Voltage Rating | 100V |
| Temperature Coefficient | ± 100ppm/°C |
| Resistor Technology | Thick Film |
| Terminal Pitch | 2.54mm |
| Product Length | 24.99mm |
| Product Height | 4.95mm |
| Operating Temperature Min | -55°C |
| Qualification | - |
| Network Circuit Type | R-2R Ladder |
|---|---|
| Resistor Case / Package | SIP |
| Resistance Tolerance | ± 2% |
| Power Rating per Resistor | - |
| Resistor Type | Network |
| Resistor Mounting | Through Hole |
| Power Rating | 1.25W |
| Product Width | 2.16mm |
| Product Range | 4300R Series |
| Operating Temperature Max | 125°C |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (3)
Alternatives for 4310R-R2R-103LF
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Costa Rica Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85332919 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001241 |
