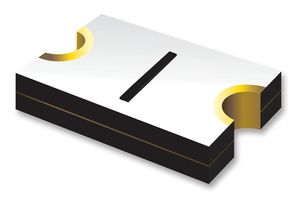

MF-FSMF010X-2
Resettable Fuse, PPTC, 0603 (1608 Metric), MF-FSMF, 15 VDC, 100 mA, 300 mA, 1 s
4,285 In Stock
Need more?
4,285 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 10 | Rs.37.960 | Rs.379.60 |
| Total Price | Rs.379.60 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 10+ | Rs.37.960 |
| 100+ | Rs.37.810 |
| 500+ | Rs.37.660 |
| 1000+ | Rs.37.510 |
| 2500+ | Rs.37.360 |
| 5000+ | Rs.37.210 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | MF-FSMF010X-2Copy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | Re-Reel2291868RL Cut Tape2291868 |
| Product Range | MF-FSMF |
| Technical Datasheet | |
| PPTC Case Style | 0603 (1608 Metric) |
| Product Range | MF-FSMF |
| Voltage Rating | 15VDC |
| Holding Current | 100mA |
| Trip Current | 300mA |
| Time to Trip | 1s |
| Current Rating Max | 40A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The MF-FSMF010X-2 is a 0.1A surface mount CPTC Resettable Fuse with nickel/gold plated terminals and standard Au finish termination pad. This low profile MF-FSMF series is applicable in USB port protection and HDMI 1.4 source protection.
- Small size results in very fast time to react to fault events
- Game console port protection
- Compact design to save board space
- -40 to 85°C Operating/storage temperature range
Applications
Computers & Computer Peripherals, Consumer Electronics, Portable Devices, Multimedia
Notes
If reflow temperatures exceed the recommended profile, device may not meet the performance requirements.
Technical Specifications
| PPTC Case Style | 0603 (1608 Metric) |
|---|---|
| Voltage Rating | 15VDC |
| Trip Current | 300mA |
| Current Rating Max | 40A |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
| Product Range | MF-FSMF |
|---|---|
| Holding Current | 100mA |
| Time to Trip | 1s |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
Technical Docs (3)
Alternatives for MF-FSMF010X-2
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001 |
