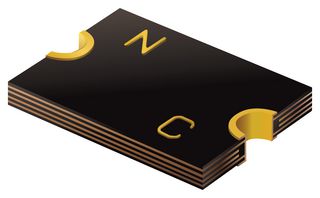

MF-GSMF300/36X-2
Resettable Fuse, PPTC, 3425 (8763 Metric), MF-GSMF, 36 VDC, 3 A, 5.2 A, 20 s
62,926 In Stock
12,000 more incoming. You can reserve stock now
62,926 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | Rs.127.360 | Rs.127.36 |
| Total Price | Rs.127.36 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | Rs.127.360 |
| 50+ | Rs.94.690 |
| 250+ | Rs.80.930 |
| 500+ | Rs.74.620 |
| 1500+ | Rs.73.290 |
| 3000+ | Rs.71.950 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | MF-GSMF300/36X-2Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | Re-Reel3131600RL Cut Tape3131600 |
| Product Range | MF-GSMF |
| Technical Datasheet | |
| PPTC Case Style | 3425 (8763 Metric) |
| Product Range | MF-GSMF |
| Voltage Rating | 36VDC |
| Holding Current | 3A |
| Trip Current | 5.2A |
| Time to Trip | 20s |
| Current Rating Max | 20A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
MF-GSMF300/36X-2 is a MF-GSMF series Multifuse® freeXpansion™ Design PTC resettable fuse. Application includes telematics with CAN, Bluetooth, WLAN, GPS and UMTS/LTE, industrial controls, and IEEE ports.
- High power ratings, low profile, utilizes innovative freeXpansion™ design
- Surface mount packaging for automated assembly
- 36V maximum voltage rating, 20amps maximum current
- 3.0amps hold current (at 23°C), 5.2amps Itrip
- 0.01 to 0.06ohms (at 23°C) resistance range, max time to trip is 8.0amps (23°C), 20.0seconds (23°C)
- 1.5watts typ tripped power dissipation (23°C)
- Class 6 (per AEC-Q200-2, HBM) ESD classification
- Humidity aging is +85°C, 85% R.H. 1000 hours (±5% typical resistance change)
- Vmax, Imax, 100 cycles trip cycle life, Vmax, 48hours trip endurance
- Operating temperature range from -40°C to +85°C
Technical Specifications
| PPTC Case Style | 3425 (8763 Metric) |
|---|---|
| Voltage Rating | 36VDC |
| Trip Current | 5.2A |
| Current Rating Max | 20A |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
| Product Range | MF-GSMF |
|---|---|
| Holding Current | 3A |
| Time to Trip | 20s |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000285 |
