MF-LSMF185/33X-2
Resettable Fuse, PPTC, 2920 (7351 Metric), MF-LSMF, 33 VDC, 1.85 A, 3.7 A, 2.5 s
57,620 In Stock
Need more?
57,620 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 10 | Rs.67.250 | Rs.672.50 |
| Total Price | Rs.672.50 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 10+ | Rs.67.250 |
| 100+ | Rs.51.530 |
| 500+ | Rs.42.750 |
| 1000+ | Rs.42.360 |
| 2000+ | Rs.41.970 |
| 4000+ | Rs.41.570 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | MF-LSMF185/33X-2Copy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | Re-Reel2057922RL Cut Tape2057922 |
| Product Range | MF-LSMF |
| Technical Datasheet | |
| PPTC Case Style | 2920 (7351 Metric) |
| Product Range | MF-LSMF |
| Voltage Rating | 33VDC |
| Holding Current | 1.85A |
| Trip Current | 3.7A |
| Time to Trip | 2.5s |
| Current Rating Max | 40A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | AEC-Q200 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

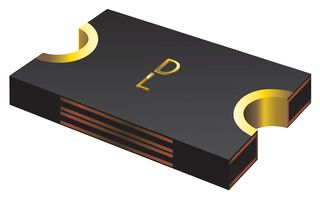

The MF-LSMF185/33X-2 is a 1.85A surface mount PTC Resettable Fuse with nickel/gold plated terminals and standard Au finish termination pad. This low profile MF-FSMF series is applicable in automotive electronics, industrial controls and IEEE ports.
- High power ratings
- -40 to 85°C Operating/storage temperature range
Applications
Automotive, Industrial, Portable Devices, Aerospace, Defence, Military
Notes
If reflow temperatures exceed the recommended profile, device may not meet the performance requirements.
Technical Specifications
| PPTC Case Style | 2920 (7351 Metric) |
|---|---|
| Voltage Rating | 33VDC |
| Trip Current | 3.7A |
| Current Rating Max | 40A |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
| Product Range | MF-LSMF |
|---|---|
| Holding Current | 1.85A |
| Time to Trip | 2.5s |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | AEC-Q200 |
Alternatives for MF-LSMF185/33X-2
4 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000281 |
