592-0301

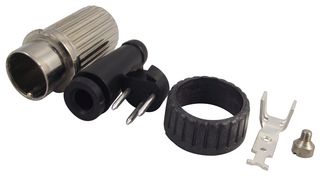

DIN Audio / Video Connector, Locking, 3 Contacts, Plug, Cable Mount, Screw, Silver Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 592-0301Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1194048 |
| Product Range | 592 |
| Also Known As | GTIN UPC EAN: 5056414506244 |
| Your Part Number | |
| Technical Datasheet |
9 In Stock
Need more?
9 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.411.250 |
| 10+ | Rs.386.800 |
| 100+ | Rs.362.340 |
| 250+ | Rs.343.960 |
| 500+ | Rs.325.580 |
| 1000+ | Rs.280.860 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.411.25
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 592-0301Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1194048 |
| Product Range | 592 |
| Also Known As | GTIN UPC EAN: 5056414506244 |
| Technical Datasheet | |
| No. of Contacts | 3Contacts |
| Gender | Plug(View Associated Connectors) |
| Connector Mounting | Cable Mount |
| Contact Termination | Screw |
| Contact Plating | Silver Plated Contacts |
| Connector Body Material | Metal Body |
| Product Range | 592 |
Alternatives for 592-0301
1 Product Found
Product Overview
The 592 series fully screened robust range of DIN Audio/Video Connectors available in bright nickel finish with an interchangeable black plastic locking ring. A simple half turn of the ring secures the plug onto the mating panel socket. The robust construction incorporates cable grip and strain-relief. This series is manufactured to DIN 41524, 45322, 45326, 45327 and 45329.
- 103MΩ at 100VDC Minimum insulation resistance
- 10mΩ Maximum contact resistance
- 500Vrms Test voltage
Applications
Audio, Sensing & Instrumentation, Imaging, Video & Vision
Technical Specifications
| No. of Contacts | 3Contacts |
|---|---|
| Connector Mounting | Cable Mount |
| Contact Plating | Silver Plated Contacts |
| Product Range | 592 |
| Gender | Plug |
|---|---|
| Contact Termination | Screw |
| Connector Body Material | Metal Body |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02334 |
