592-0501
DIN Audio / Video Connector, Locking, 180°, 5 Contacts, Plug, Cable Mount, Screw

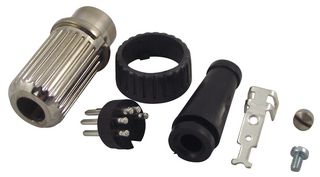

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 592-0501Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1194050 |
| Product Range | 592 |
| Also Known As | GTIN UPC EAN: 5056414506268 |
| Your Part Number | |
| Technical Datasheet |
119 In Stock
Need more?
119 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.436.360 |
| 10+ | Rs.427.640 |
| 100+ | Rs.418.910 |
| 250+ | Rs.410.180 |
| 500+ | Rs.401.460 |
| 1000+ | Rs.392.730 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.436.36
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 592-0501Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1194050 |
| Product Range | 592 |
| Also Known As | GTIN UPC EAN: 5056414506268 |
| Technical Datasheet | |
| No. of Contacts | 5Contacts |
| Gender | Plug(View Associated Connectors) |
| Connector Mounting | Cable Mount |
| Contact Termination | Screw |
| Contact Plating | Silver Plated Contacts |
| Connector Body Material | Metal Body |
| Product Range | 592 |
Product Overview
The 592 series fully screened robust range of DIN Audio/Video Connectors available in bright nickel finish with an interchangeable black plastic locking ring. A simple half turn of the ring secures the plug onto the mating panel socket. The robust construction incorporates cable grip and strain-relief. This series is manufactured to DIN 41524, 45322, 45326, 45327 and 45329.
- 103MΩ at 100VDC Minimum insulation resistance
- 10mΩ Maximum contact resistance
- 500Vrms Test voltage
Applications
Audio, Sensing & Instrumentation, Imaging, Video & Vision
Technical Specifications
| No. of Contacts | 5Contacts |
|---|---|
| Connector Mounting | Cable Mount |
| Contact Plating | Silver Plated Contacts |
| Product Range | 592 |
| Gender | Plug |
|---|---|
| Contact Termination | Screw |
| Connector Body Material | Metal Body |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
