6862-201-20278
Circular Connector Contact, Machined, Common Contact System, Socket, Crimp, 20 AWG, 24 AWG

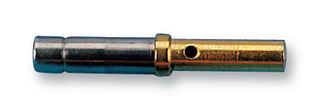

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - DEUTSCH |
|---|---|
| Manufacturer Part No | 6862-201-20278Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 1019252 |
| Product Range | Common Contact System |
| Your Part Number | |
| Technical Datasheet |
1,719 In Stock
Need more?
1,719 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.219.990 |
| 10+ | Rs.193.240 |
| 100+ | Rs.173.180 |
| 250+ | Rs.157.890 |
| 500+ | Rs.146.430 |
| 1000+ | Rs.145.490 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.219.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - DEUTSCH |
|---|---|
| Manufacturer Part No | 6862-201-20278Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 1019252 |
| Product Range | Common Contact System |
| Technical Datasheet | |
| Product Range | Common Contact System |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 24AWG |
| For Use With | Deutsch IMC Series Circular Industrial Micro Connectors |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| SVHC | Lead (23-Jan-2024) |
Product Overview
The 6862-201-20278 is a Crimp Contact for use with IMC series circular industrial micro connectors, socket type, 24 to 20AWG type. Gold-plated copper alloy for high reliability, extended life and superior conductivity. Closed entry sockets for proper alignment and resistance to probe damage.
- 7.5A Current rating
- 1000VAC (RMS) Voltage rating
- Insertable and removable for easy assembly and maintenance
- 2.3mm Engagement for electrical circuit integrity
Applications
Industrial
Technical Specifications
| Product Range | Common Contact System |
|---|---|
| Contact Termination Type | Crimp |
| Wire Size AWG Min | 24AWG |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (23-Jan-2024) |
| Contact Gender | Socket |
|---|---|
| Wire Size AWG Max | 20AWG |
| For Use With | Deutsch IMC Series Circular Industrial Micro Connectors |
| Contact Material | Copper Alloy |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000249 |
