FIT0708
Stepper Motor, Hybrid, 10 mm, Bipolar, 18 °

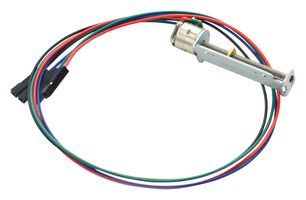

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | DFROBOT |
|---|---|
| Manufacturer Part No | FIT0708Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3769879 |
| Your Part Number | |
| Technical Datasheet |
17 In Stock
Need more?
17 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,256.210 |
| 5+ | Rs.1,231.090 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,256.21
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DFROBOT |
|---|---|
| Manufacturer Part No | FIT0708Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3769879 |
| Technical Datasheet | |
| Stepper Motor Type | Hybrid |
| Motor Size | 10mm |
| Coil Type | Bipolar |
| Step Angle | 18° |
| Torque Max | - |
| Current Rating | - |
| Voltage Rating Max | 5VDC |
| No. of Wires | 4 |
| External Length | 45.1mm |
| Shaft Diameter | - |
| Product Range | - |
| Shaft Length | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
This 10mm micro stepper motor offers 18° per step and 2-phase 4-wire. No special driver board required, the stepper motor can directly work with main-controllers like Arduino, ESP32, etc. There is a metal slider on the motor’s slide rod, which makes it applicable to projects like automatic door-lock, camera propeller, and DIY smart home.
- Driving Voltage: 3.5V to 5V DC
- Coil Resistance: 20Ω +/-10%
- 2 Phase
- Step Angle: 18°/step
- Excitation: 2-2 phase excitation
- Driving Method: bipolar drive
- Max Auto-start Frequency: 1500PPS Min
- Insulation Grade: E CLASS
- Withstand Voltage: 100V AC,1S
- Insulation Resistance: 1.0MΩ(DC100V)
Technical Specifications
| Stepper Motor Type | Hybrid |
|---|---|
| Coil Type | Bipolar |
| Torque Max | - |
| Voltage Rating Max | 5VDC |
| External Length | 45.1mm |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Motor Size | 10mm |
|---|---|
| Step Angle | 18° |
| Current Rating | - |
| No. of Wires | 4 |
| Shaft Diameter | - |
| Shaft Length | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .015 |
