| Manufacturer | DFROBOT |
|---|---|
| Manufacturer Part No | SEN0230Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3769954 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.2,554.340 |
Product Information
| Manufacturer | DFROBOT |
|---|---|
| Manufacturer Part No | SEN0230Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3769954 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Technical Datasheet | |
| Silicon Manufacturer | - |
| Accessory Type | Incremental Photoelectric Rotary Encoder - 400P/R |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | DFRduino UNO Board |
| Kit Contents | Encoder, Encoder Mounting Bracket, 6mm Coupling, Screw Accessories, 10 kOhm Resistor |
| Product Range | TUK SGACK902S Keystone Coupler |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
SEN0230 is an incremental photoelectric rotary encoder. This is an industrial incremental photoelectric rotary encoder with aluminium material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.
- Supply voltage range from 4.8V to 24V
- Encoder body size is Φ39× 36.5mm
- Output shaft diameter of Φ6 × 13mm
- Outside shaft platform of Φ20 × 4.85mm
- M3 fixing holes screws
- 234g weight
Contents

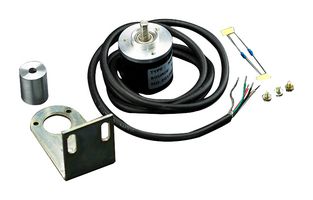

Encoder x 1, Encoder mounting bracket x 1, 6mm coupling x 1, Screw accessories x 1, 10K resistance x 2.
Technical Specifications
| Silicon Manufacturer | - |
|---|---|
| Core Architecture | - |
| Silicon Core Number | - |
| For Use With | DFRduino UNO Board |
| Product Range | TUK SGACK902S Keystone Coupler |
| Accessory Type | Incremental Photoelectric Rotary Encoder - 400P/R |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Encoder, Encoder Mounting Bracket, 6mm Coupling, Screw Accessories, 10 kOhm Resistor |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .24 |
