6069-471-000
Evaluation Board, MCC 172 DAQ HAT, Raspberry Pi, IEPE Measurement, 24Bit, 51.2 kS/s, Coaxial Cable
| Manufacturer | DIGILENT |
|---|---|
| Manufacturer Part No | 6069-471-000Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3798631 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.47,225.410 |
Product Information
| Manufacturer | DIGILENT |
|---|---|
| Manufacturer Part No | 6069-471-000Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3798631 |
| Technical Datasheet | |
| Add-On-Card & Module Type | IEPE Measurement DAQ HAT |
| Silicon Manufacturer | - |
| Core Architecture | - |
| For Use With | Raspberry Pi |
| Core Sub-Architecture | - |
| Product Range | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| Kit Contents | IEPE Measurement DAQ HAT Board, 2 x Coaxial Cable |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

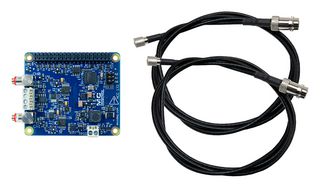

6069-471-000 is a MCC 172 IEPE measurement DAQ HAT for Raspberry Pi® with two coaxial cables. The MCC 172 IEPE measurement DAQ HAT features two channels for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. It features a 24bit A/D per channel and a maximum sample rate of 51.2KS/s/ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi.
- Two IEPE inputs
- Two 24bit, 51.2KS/s A/D converters (one per channel)
- AC coupled at ±5V
- 10-32 and screw terminal connections for OEM support
- Synchronous ADC conversions between multiple boards
- Onboard sample buffers allow high-speed acquisition
- External digital trigger input
Contents
MCC 172 DAQ HAT standalone, bundled with two coaxial cables (3ft, with 10-32 plug to BNC jack), 2x20 header connector (plugs into the 40 pin GPIO connector on the Pi board), Jumpers (3), Standoffs (4), Screws (4), Nuts (4), Printed insert: getting started with MCC DAQ HATs, MCC packaging assembly/foam.
Technical Specifications
| Add-On-Card & Module Type | IEPE Measurement DAQ HAT |
|---|---|
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Kit Contents | IEPE Measurement DAQ HAT Board, 2 x Coaxial Cable |
| Silicon Manufacturer | - |
|---|---|
| For Use With | Raspberry Pi |
| Product Range | - |
| Silicon Family Name | - |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .102058 |
