R2S133-AE17-05

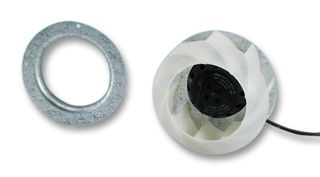

Fan Blower, R2E133 Series, IP22, Motorized Impeller, 230 VAC, AC, 133 mm, 91 mm, 165 CFM
11 In Stock
Need more?
11 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.15,581.410 |
| 5+ | Rs.14,897.970 |
| 10+ | Rs.14,214.530 |
| 25+ | Rs.13,935.550 |
| 50+ | Rs.13,656.560 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.15,581.41
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEBM-PAPST
Manufacturer Part NoR2S133-AE17-05
Order Code9601228
Product RangeR2E133
Technical Datasheet
Blower TypeMotorized Impeller
Supply Voltage230VAC
Voltage TypeAC
Fan Frame Size133mm
External Depth91mm
Air Flow - CFM165CFM
Air Flow - m3/min4.67m³/min
Noise Rating55dBA
Bearing TypeBall Bearing
Power Connection Type3 Lead Wires
Power Rating36W
Product RangeR2E133
IP RatingIP22
Product Overview
ebm-papst offers a wide range of centrifugal fans for use when airflow has to be deflected by 90° or higher pressures are encountered.
- Backward-curved impeller
- Low-noise operation
- High product quality
- Low noise level
- Moisture-proof design
- Long service life
- Supplied with inlet ring and capicitor
Applications
Industrial, Thermal Management, HVAC
Technical Specifications
Blower Type
Motorized Impeller
Voltage Type
AC
External Depth
91mm
Air Flow - m3/min
4.67m³/min
Bearing Type
Ball Bearing
Power Rating
36W
IP Rating
IP22
Supply Voltage
230VAC
Fan Frame Size
133mm
Air Flow - CFM
165CFM
Noise Rating
55dBA
Power Connection Type
3 Lead Wires
Product Range
R2E133
Technical Docs (3)
Alternatives for R2S133-AE17-05
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:84145990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):9.07184
