| Manufacturer | EDAC |
|---|---|
| Manufacturer Part No | 299-020-299-198Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 4069520 |
| Product Range | EDAC ClipZin Connectors |
| Your Part Number | |
| Technical Datasheet |
100 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.425.270 |
Product Information
| Manufacturer | EDAC |
|---|---|
| Manufacturer Part No | 299-020-299-198Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 4069520 |
| Product Range | EDAC ClipZin Connectors |
| Technical Datasheet | |
| Card Edge Connector Type | Single Side |
| Card Thickness | - |
| No. of Contacts | 20 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating - Mating Side | Gold Flash Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Product Range | EDAC ClipZin Connectors |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

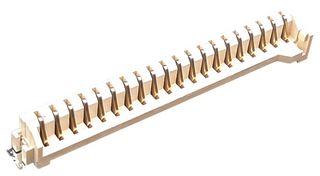

The ClipZin™ card edge connector is a unique mounting solution for IoT prototyping that allows single board modules to be temporarily connected instead of being permanently fixed to a PCB. The simple, surface mount design allows you to connect & disconnect the module as and when required and also features a retention clip to hold the module in place. The ClipZin design eliminates the need for pin headers and provides a convenient alternative to soldering headers directly to module boards. Two 20 contact edge connectors, these ClipZin are perfect for use with the Raspberry Pi Pico and Pico W development boards.
- 20 Contact connector design, fully compatible with the Raspberry Pi Pico and Pico W development boards
- Fast, tool-less assembly with a positive click to confirm connection
- Eliminates the need to solder headers to the PCB to mount a single module
- Ensures a reliable and consistent connection between contacts and the castellated board edge
- Enables rapid connection and disconnection for effective prototyping
- Integrated retention clips keep the module secure
- Suitable for surface mount soldering
- Gold plated pins for connection reliability
Notes
Note: ClipZin SMT connectors are suitable for modules with a castellated edge PCB design
Technical Specifications
| Card Edge Connector Type | Single Side |
|---|---|
| No. of Contacts | 20 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| SVHC | No SVHC (25-Jun-2025) |
| Card Thickness | - |
|---|---|
| Connector Mounting | Surface Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | Gold Flash Plated Contacts |
| Product Range | EDAC ClipZin Connectors |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84734090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00452 |
