01-1424

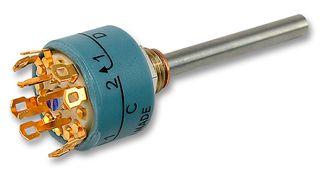

Rotary Switch, 2 Position, 4 Pole, 60 °
Image is for illustrative purposes only. Please refer to product description.
38 In Stock
Need more?
38 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.7,531.160 |
| 5+ | Rs.7,380.540 |
| 10+ | Rs.7,229.920 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.7,531.16
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerELMA
Manufacturer Part No01-1424
Order Code1876079
Technical Datasheet
No. of Switch Positions2 Position
No. of Poles4 Pole
Angle of Throw60°
Contact Current AC Max-
Contact Voltage AC Max-
Product Range-
IlluminationNon Illuminated
Contact Current DC Max2A
Contact Voltage DC Max42V
SVHCNo SVHC (15-Jan-2018)
Product Overview
The 01-1424 from Elma is a rotary switch. It is a compact, 6 position selector switch of type 01 version with 60° indexing angle and non shorting circuit.
- 4 x 2 poles per wafer
- Available with solder eyelets
- 25000 switching cycles with upto 6Ncm switching torque
- Gold plated contacts
- Robust metal housing with metal shaft
- Operating temperature range from -40°C to 85°C
- Stainless steel shaft and Nickel silver bushing
- Maximum switching voltage is 42VDC
- Maximum load current is 2A
Applications
Industrial, Power Management, Automation & Process Control, Avionics, Sensing & Instrumentation, Medical, Audio
Technical Specifications
No. of Switch Positions
2 Position
Angle of Throw
60°
Contact Voltage AC Max
-
Illumination
Non Illuminated
Contact Voltage DC Max
42V
No. of Poles
4 Pole
Contact Current AC Max
-
Product Range
-
Contact Current DC Max
2A
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01235
