B65887E0000R087

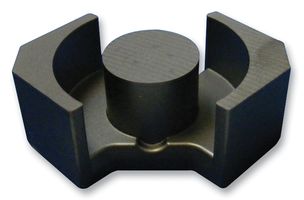

Transformer Cores, RM, RM14, N87, 70 mm, 200 mm²
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TDK |
|---|---|
| Manufacturer Part No | B65887E0000R087Copy |
| Manufacturer Standard Lead Time | 32 weeks |
| Order Code | 1781864 |
| Product Range | B65887 Series |
| Your Part Number | |
| Technical Datasheet |
184 In Stock
1,200 more incoming. You can reserve stock now
184 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,298.800 |
| 5+ | Rs.1,109.880 |
| 10+ | Rs.920.950 |
| 20+ | Rs.850.780 |
| 40+ | Rs.780.610 |
| 60+ | Rs.755.210 |
Price for:1 Pair
Minimum: 1
Multiple: 1
Rs.1,298.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TDK |
|---|---|
| Manufacturer Part No | B65887E0000R087Copy |
| Manufacturer Standard Lead Time | 32 weeks |
| Order Code | 1781864 |
| Product Range | B65887 Series |
| Technical Datasheet | |
| Core Type | RM |
| Core Size | RM14 |
| For Use With | - |
| Core Material Grade | N87 |
| Effective Magnetic Path Length | 70mm |
| Ae Effective Cross Section Area | 200mm² |
| Inductance Factor Al | 6µH |
| Product Range | B65887 Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The B65887E0000R087 is a RM14-type Transformer Ferrite Core with N87 material grade. It has ungapped construction and optimized core cross section, increased thickness of base for power applications, without centre hole. The magnetic properties of NiZn materials can change irreversible in high magnetic fields. Meets IEC 62317-4 standards.
- 6000 +30/-20% Inductance factor
Applications
Industrial
Technical Specifications
| Core Type | RM |
|---|---|
| For Use With | - |
| Effective Magnetic Path Length | 70mm |
| Inductance Factor Al | 6µH |
| SVHC | No SVHC (25-Jun-2025) |
| Core Size | RM14 |
|---|---|
| Core Material Grade | N87 |
| Ae Effective Cross Section Area | 200mm² |
| Product Range | B65887 Series |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .074 |
