B66358G0200X187

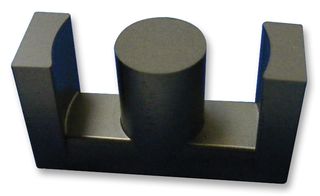

Transformer Cores, ETD29, N87, 70.4 mm, 76 mm²
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TDK |
|---|---|
| Manufacturer Part No | B66358G0200X187Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 1781875 |
| Product Range | B66358 Series |
| Your Part Number | |
| Technical Datasheet |
723 In Stock
Need more?
723 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.284.160 |
| 50+ | Rs.151.740 |
| 100+ | Rs.133.870 |
| 250+ | Rs.127.900 |
| 500+ | Rs.121.930 |
| 900+ | Rs.115.960 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.284.16
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TDK |
|---|---|
| Manufacturer Part No | B66358G0200X187Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 1781875 |
| Product Range | B66358 Series |
| Technical Datasheet | |
| Core Type | - |
| Core Size | ETD29 |
| For Use With | - |
| Core Material Grade | N87 |
| Effective Magnetic Path Length | 70.4mm |
| Ae Effective Cross Section Area | 76mm² |
| Inductance Factor Al | 383nH |
| Product Range | B66358 Series |
Product Overview
The B66358G0200X187 is an ETD29-type Transformer Ferrite Core with N87 material grade. It has gapped construction for SMPS transformers with optimum weight/performance ratio at small volume. The magnetic properties of NiZn materials can change irreversible in high magnetic fields. Meets IEC 61185 standards.
- 383 Inductance factor
Applications
Industrial
Technical Specifications
| Core Type | - |
|---|---|
| For Use With | - |
| Effective Magnetic Path Length | 70.4mm |
| Inductance Factor Al | 383nH |
| Core Size | ETD29 |
|---|---|
| Core Material Grade | N87 |
| Ae Effective Cross Section Area | 76mm² |
| Product Range | B66358 Series |
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014 |
