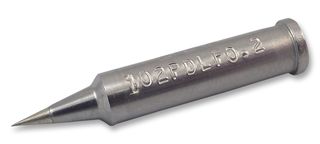

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ERSA |
|---|---|
| Manufacturer Part No | 0102PDLF02/SBCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1203966 |
| Your Part Number | |
| Technical Datasheet |
301 In Stock
Need more?
301 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,187.060 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,187.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ERSA |
|---|---|
| Manufacturer Part No | 0102PDLF02/SBCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1203966 |
| Technical Datasheet | |
| Tip / Nozzle Width | 0.2mm |
| Tip / Nozzle Style | Pencil |
| For Use With | I-Tool Soldering Iron |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 0102PDLF02/SB is a pencil point Soldering Tip and lead-free soldering will require higher working temperatures. In addition, the higher tin (Sn) content in the lead-free solder will greatly increase the stress degradation to the solder tip, thereby decreasing the life of the tip considerably. In order to increase the tip life, soldering tip manufacturers must adjust the amount of iron (Fe) plating on the tips. The base material made of highly conductive electrolytic copper ensures unhindered heat transfer from the heating element to the ERSADUR-LF coating.
- 24V voltage rating
- 150W ±10% power rating
- Approximately 9 seconds to 350°C heating time
- 30.5mm total length
- Antistatic according to MIL-SPEC/ESA standards with integrated ID and standby function model
Applications
Maintenance & Repair
Technical Specifications
| Tip / Nozzle Width | 0.2mm |
|---|---|
| For Use With | I-Tool Soldering Iron |
| SVHC | No SVHC (25-Jun-2025) |
| Tip / Nozzle Style | Pencil |
|---|---|
| Product Range | - |
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Costa Rica Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 73269099 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .003 |
