MC2004E-SYL
Alphanumeric LCD, 20 x 4, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective

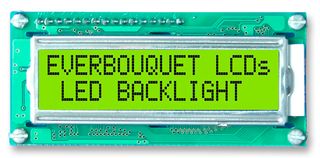

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EVERBOUQUET |
|---|---|
| Manufacturer Part No | MC2004E-SYLCopy |
| Order Code | 1220439 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | EVERBOUQUET |
|---|---|
| Manufacturer Part No | MC2004E-SYLCopy |
| Order Code | 1220439 |
| Technical Datasheet | |
| Character Count x Line | 20 x 4 |
| Display Appearance | Black on Yellow / Green |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | English, Japanese |
| Display Mode | Transflective |
| Character Size | 4.16mm |
| LCD Display Type | STN |
| Module Size | 98mm x 60mm |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Display Construction | COB |
| Backlighting Colour | Yellow / Green |
| Product Range | - |
Alternatives for MC2004E-SYL
1 Product Found
Product Overview
The MC2004E-SYL from Everbouquet is a alphanumeric LCD display module.
- Maximum logic supply voltage is 6V
- Display format is 20 character x 4 lines
- Character size of 2.95mm x 4.15mm (W x H)
- Transflective display
- Viewing area of 76mm x 25.2mm ( W x H)
- Operating temperature range from 0°C to 50°C
Applications
Imaging, Video & Vision
Technical Specifications
| Character Count x Line | 20 x 4 |
|---|---|
| Logic Voltage | 5V |
| Font Set | English, Japanese |
| Character Size | 4.16mm |
| Module Size | 98mm x 60mm |
| Operating Temperature Max | 50°C |
| Backlighting Colour | Yellow / Green |
| Display Appearance | Black on Yellow / Green |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| LCD Display Type | STN |
| Operating Temperature Min | 0°C |
| Display Construction | COB |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .073 |
