| Manufacturer | FLUKE |
|---|---|
| Manufacturer Part No | FLUKE 80I-110SCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2422944 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.152,641.380 |
Product Information
| Manufacturer | FLUKE |
|---|---|
| Manufacturer Part No | FLUKE 80I-110SCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2422944 |
| Technical Datasheet | |
| Meter Side Connector | BNC Plug |
| Probe Side Connector | Current Clamp |
| Current Range Max | 100A |
| Current Range Min | 50mA |
| For Use With | Fluke Scope Meter Test Tool, Power Harmonics Analyzers, Oscilloscopes, Multimeters |
| Product Range | - |
Product Overview

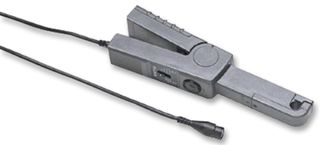

FLUKE 80I-110S is an AC/DC current clamp designed for use with oscilloscopes and other instruments. It allows accurate, non-intrusive current measurements up to 100 A AC/DC. With a wide frequency response and high sensitivity, it is ideal for capturing inrush currents, power harmonics, and transient signals in electronic and industrial applications.
- Output signal of 10A range: 100mV/A / 100A range: 10mV/A
- Bandwidth range from 1Hz to 20kHz
- Working voltage of 600V AC rms
- Maximum conductor size is 11.8mm (.46") diameter
- Safety rating: IEC 1010 and CSA-C22.2 No. 1010-1 installation category II, working voltage 600V
- Powered by 9V battery
- 1.6m output cable length
- One year warranty
Notes
Get a FREE Fluke tool on spend of £100+ (excl. VAT)in EMEA only, until 31/12/2026 (Discover more: https://www.farnell.com/datasheets/4800832.pdf). Calibration services are available (Europe only). Please visit our calibration services page for more details.
Technical Specifications
| Meter Side Connector | BNC Plug |
|---|---|
| Current Range Max | 100A |
| For Use With | Fluke Scope Meter Test Tool, Power Harmonics Analyzers, Oscilloscopes, Multimeters |
| Probe Side Connector | Current Clamp |
|---|---|
| Current Range Min | 50mA |
| Product Range | - |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90329000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | No |
| RoHS Phthalates Compliant: | No |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .3 |
