DB9-USB-D3-F
USB to UART Converter Modules DB9-USB Family
- Manufacturer:
- FTDI FTDI
- Manufacturer Part No:
- DB9-USB-D3-F
- Order Code:
- 2419925
- Technical Datasheet:
- DB9-USB-D3-F Datasheet
Product Overview

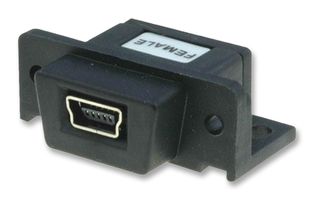

The DB9-USB-D3-F is a full-speed USB to UART Module that operates at 3.3V signal level. It can be used to replace a female DB9 connector that is wired in a PC compatible RS232 manner. It provides a simple and fast method of migrating existing DB9 based connector UART interfaces to USB 2.0. It is ideal for legacy applications which feature UART DB9 based connectors. It can be used to interface to an application systems logic level.
- 1-channel
- Works with USB 1.1 and 2.0 host and hub ports
- Chip set and device drivers for maximum compatibility
- Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers
- Installs as a standard Windows COM port
- 128-byte transmit buffer, 256-byte receive buffer
- TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND UART data signals
- Powered by USB port (no external power adapter required)
- 3Mbps serial port speed
- Serial communication
- -40 to +85°C operating temperature
Applications
Industrial, Commercial, Embedded Design & Development
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- USB to UART
- :
- UART, USB
- :
- FT232R
- :
- -
- :
- 3.3V
- :
- -
