DB9-USB-D3-M

USB to UART Converter Modules DB9-USB Family

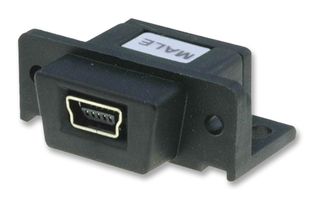

FTDI DB9-USB-D3-M

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
FTDI FTDI
Manufacturer Part No:
DB9-USB-D3-M
Order Code:
2419926
Technical Datasheet:
DB9-USB-D3-M   Datasheet
See all Technical Docs

Product Overview

The DB9-USB-D3-M is a full-speed USB to UART Module that operates at 3.3V signal level. It can be used to replace a male DB9 connector that is wired in a PC compatible RS232 manner. It provides a simple and fast method of migrating existing DB9 based connector UART interfaces to USB 2.0. It is ideal for legacy applications which feature UART DB9 based connectors. It can be used to interface to an application systems logic level.
  • 1-channel
  • Works with USB 1.1 and 2.0 host and hub ports
  • Chip set and device drivers for maximum compatibility
  • Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers
  • Installs as a standard Windows COM port
  • 128-byte transmit buffer, 256-byte receive buffer
  • TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND UART data signals
  • Powered by USB port (no external power adapter required)
  • 3Mbps serial port speed
  • Serial communication
  • -40 to +85°C operating temperature

Applications

Industrial, Commercial, Embedded Design & Development

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
USB to UART

:
UART, USB

:
FT232R

:
-

:
3.3V

:
-

Find similar products Choose and modify the attributes above to find similar products.
