FTDI UMFT201XB-01

USB to I2C Breakout Module, USB Battery Charger Detection, 3.3V O/p, Up to 3.4MHz, High Speed Mode

FTDI UMFT201XB-01
360°
×

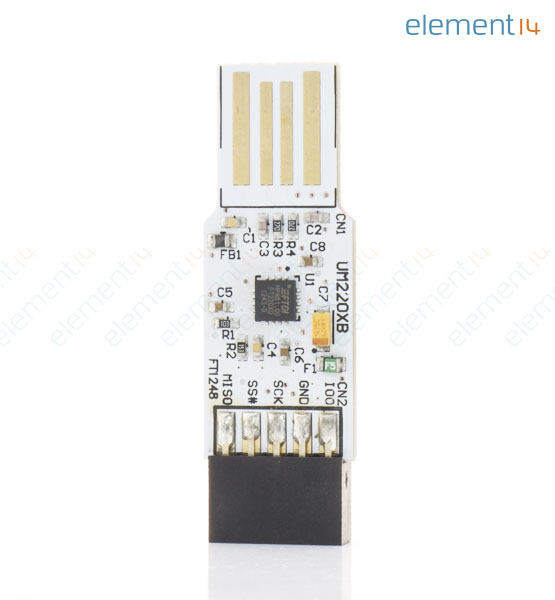

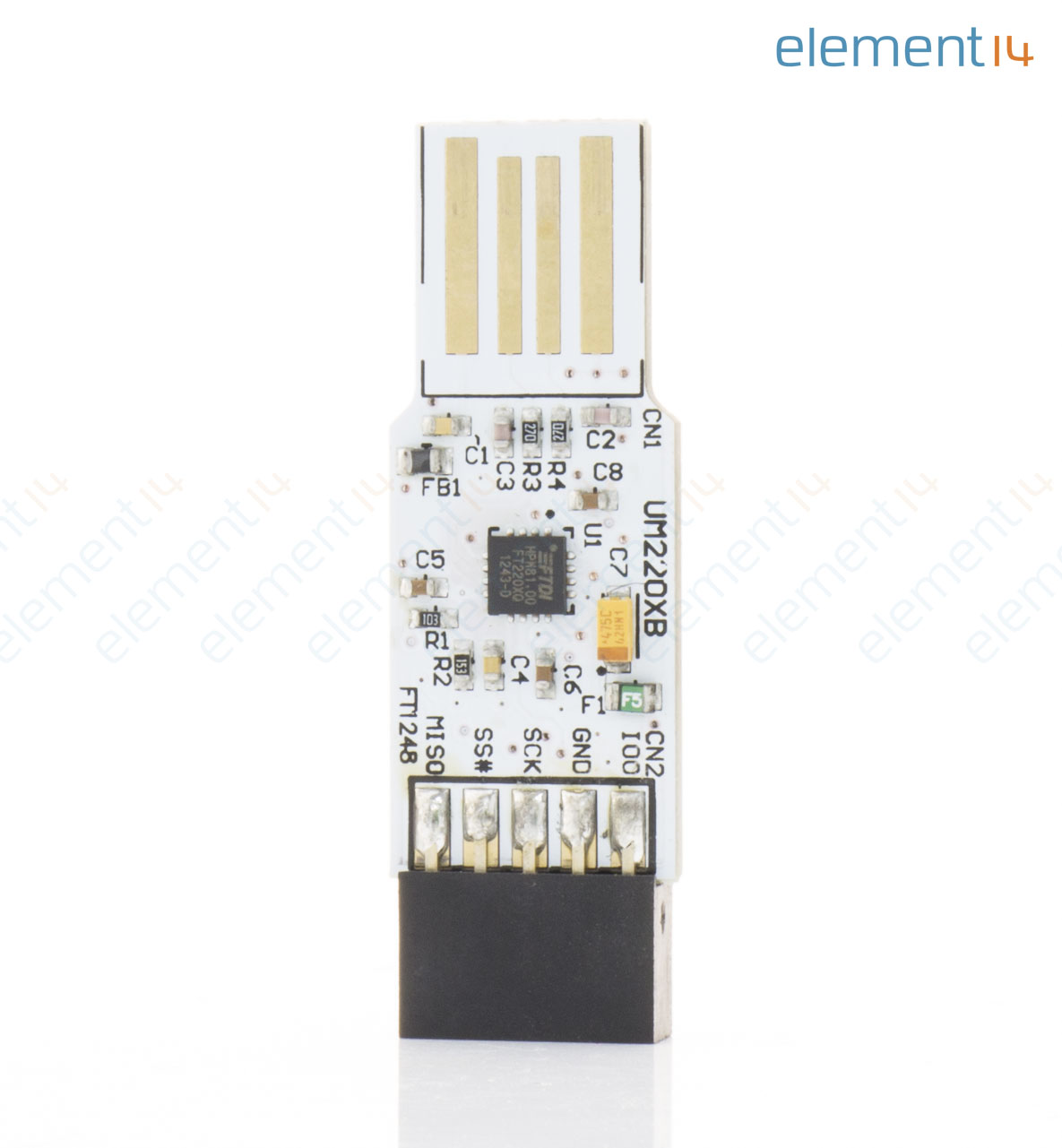

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
FTDI FTDI
Manufacturer Part No:
UMFT201XB-01
Order Code:
2081334
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
UMFT201XB-01   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

UMFT201XB-01 breakout modules utilize FT201XQ chip to convert USB to serial interface. UMFT201XB bridges from USB to I2C IC. This hardware is a low cost breakout board form factor that converts USB2.0 full speed to a serial interface and connects the serial signals to a 2.54mm (0.1inch) pitch 10pin female receptacle. The boards do not use a USB connector, but instead the modules plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. This modules operate at +3.3V voltage levels, however all I/Os are 5V tolerant.
  • Up to 3.4MHz, high speed mo+I978:X978de, I2C supported
  • Entire USB protocol handled on the chip. No USB specific firmware programming required
  • Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
  • Configurable CBUS I/O pin
  • Transmit and receive LED drive signals
  • Device supplied preprogrammed with unique USB serial number
  • Integrated power on reset circuit
  • UHCI/OHCI/EHCI host controller compatible
  • USB 2.0 Full Speed compatible
