V2DIP1-32

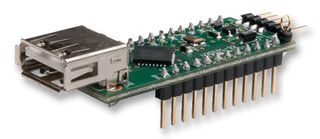

V2DIP1-32 is a 32pin VNC2 based development module with single USB connector. The module is targeted for prototyping with the VNC2 and for application integration to enable USB capability within a finished product design. The VNC2 is the second of FTDI's Vinculum family of Embedded dual USB host controller devices. The VNC2 device provides USB Host interfacing capability for variety of different USB device classes including support for BOMS, Printer, HID. For mass storage devices such as USB Flash drives, VNC2 also transparently handles the FAT file structure. Communication with non USB devices such as a low cost microcontroller is accomplished via either UART, SPI or parallel FIFO interfaces. The VNC2 provides a new cost effective solution for providing USB Host capability into products that previously did not have the hardware resources available. The VNC2 supports the capability to enable customers to develop custom firmware using the Vinculum II development software tool suite.

• Uses FTDI's VNC2-32Q embedded USB host controller IC device
• USB 'A' type USB socket to interface with USB peripheral devices
• Second USB interface port accessible via module pins if required
• UART, parallel FIFO with and SPI interfaces can be programmed to a choice of available I/O pins
• Single 5V supply input
• All VNC2 signals available on 0.6" wide / 0.1" pitch DIL male connectors
• Power and traffic indicator LED's
• Debugger interface pin available on DIL pins or via 6way male header
• Firmware upgrades via UART or debugger interface pin header
• Development tool supports compiler, linker and debugger tools complete within an IDE
