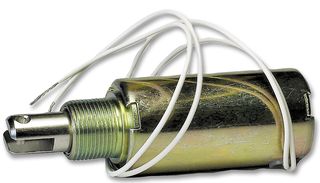

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | GUARDIAN ELECTRIC |
|---|---|
| Manufacturer Part No | T12X19-C-24DCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1608128 |
| Product Range | T12X19 Series |
| Your Part Number | |
| Technical Datasheet |
5 In Stock
Need more?
5 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.6,933.060 |
| 5+ | Rs.6,681.440 |
| 10+ | Rs.6,370.830 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.6,933.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | GUARDIAN ELECTRIC |
|---|---|
| Manufacturer Part No | T12X19-C-24DCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1608128 |
| Product Range | T12X19 Series |
| Technical Datasheet | |
| Solenoid Operation | Pull |
| Solenoid Duty Cycle | Continuous |
| Coil Voltage | 24VDC |
| Holding Force | 49.764N |
| Coil Resistance | 68ohm |
| Coil Power Continuous | 8.9W |
| Coil Termination | Wire Leaded |
| External Diameter | 38.1mm |
| External Length | 61.7mm |
| Product Range | T12X19 Series |
Product Overview
The T12X19-C-24D is a 12VDC/7.8W DC Tubular Solenoid with pull operation, continuous duty cycle and 68Ω coil resistance. This solenoid can only be energized for a maximum of 180 seconds and then they must cool for a minimum of 540 seconds. Continuous-duty units can be energized indefinitely.
- Mount directly to threaded bushing
Applications
Industrial
Contents
Tubular solenoid, L-shaped mounting brackets, Hex nuts and lock washers.
Notes
Exceeding the duty cycle rating may result in overheating and solenoid failure.
Technical Specifications
| Solenoid Operation | Pull |
|---|---|
| Coil Voltage | 24VDC |
| Coil Resistance | 68ohm |
| Coil Termination | Wire Leaded |
| External Length | 61.7mm |
| Solenoid Duty Cycle | Continuous |
|---|---|
| Holding Force | 49.764N |
| Coil Power Continuous | 8.9W |
| External Diameter | 38.1mm |
| Product Range | T12X19 Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84819090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .476272 |
