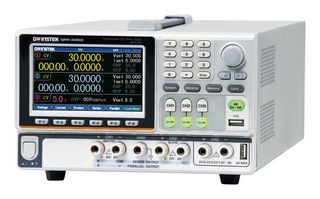

GW INSTEK GPP-3060 RS232/USB/LAN

Bench Power Supply, Programmable, 3 Output, 0 V, 30 V, 0 A, 6 A

GW INSTEK GPP-3060 RS232/USB/LAN
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
GW INSTEK GW INSTEK
Manufacturer Part No:
GPP-3060 RS232/USB/LAN
Order Code:
3874812
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
GPP series
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (GPP series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Programmable

:
3 Output

:
0V

:
30V

:
0A

:
6A

:
385W

:
-

:
230V

:
-

:
GPP series

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

GPP-3060 RS232/USB/LAN is a 385W three-channel programmable DC power supply with RS-232, USB, LAN interface. It supports CH1/CH2: 0 ~ 30V / 0 ~ 6A output. It inherit the high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA) of the GPP series with low-ripple noise characteristics ≦1mVrms/≦2mArms and ≦100µs output transient recovery ability. An independent output on-off switch is provided for each channel. The unique load function of the GPP series can arbitrarily set CH1/CH2 as power supply or load function. For example, one channel is set as power output, and the other channel is set as load function to consume the power of the DUT to satisfy simple battery charging and discharging or load characteristic test by a single power supply.
  • 4.3"TFT LCD display
  • Setting resolution: 1mV/0.1mA, read back resolution: 0.1mV/0.1mA
  • Low ripple noise: ≦1mVrms/ ≦2mArms, Transient response time: ≦100µS
  • Load function (CC, CV, CR mode)
  • Tracking series and parallel function without additional external wiring
  • Utilizing hardware to realize OVP/OCP/OTP
  • Delay function / output monitoring function / output recorder function
  • Supports setting value, measurement value and output waveform display
  • Sequential output function and built-in 8 template waveforms
  • Provides 10 sets of memory for each sequence/delay/recorder/panel setting condition

Contents

Programmable DC power supply, CD (user manual), Quick start manual, Power cord, GTL-104A x 3 test lead, GTL-204A x3, GTL-201A x1 European test leads.
