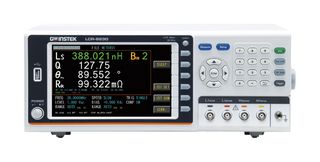

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | LCR-8230 (CE)Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3257406 |
| Product Range | LCR-8200 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,561,353.850 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,561,353.85
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | LCR-8230 (CE)Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3257406 |
| Product Range | LCR-8200 Series |
| Technical Datasheet | |
| LCR Type | Bench |
| Test Frequency Max | 30MHz |
| Inductance Measure Max | 9999.99kH |
| Capacitance Measure Max | 9999.99F |
| Resistance Measure Max | 99.9999Mohm |
| Product Range | LCR-8200 Series |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
- 10Hz to 30MHz high-frequency LCR meter
- 7" LCD colour display (800 x 480 pixels)
- 0.08% basic accuracy
- Displaying four measurement results simultaneously from 17 selectable measurement parameters freely
- 15 steps list measurement
- Two curves sweep mode
- Internal DC bias voltage of ±12V
- USB storage and ALC function available
- RS-232C, USB host/device, LAN, GPIB and Handler interfaces
- Universal power input
Contents
LCR meter, User manual (CD) x 1, AC power cord x 1, Test fixture LCR-06B x 1, Safety sheet x 1.
Technical Specifications
| LCR Type | Bench |
|---|---|
| Inductance Measure Max | 9999.99kH |
| Resistance Measure Max | 99.9999Mohm |
| SVHC | No SVHC (10-Jun-2022) |
| Test Frequency Max | 30MHz |
|---|---|
| Capacitance Measure Max | 9999.99F |
| Product Range | LCR-8200 Series |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90303100 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 7.6 |
